EchoPanel H Baffle

Double your sound absorbing pleasure with the H Baffle!

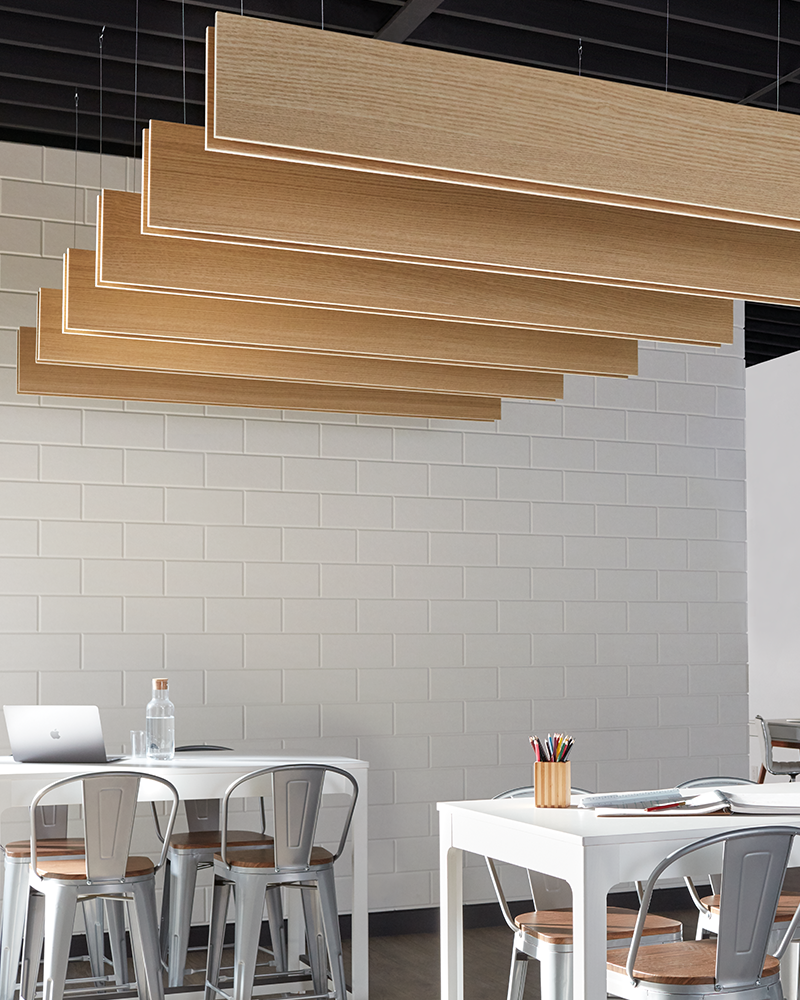

H Baffle is designed to disperse and absorb excessive sound while creating a unique, eye-catching ceiling design. Hang at any height in regular rows or random groupings.

SPEC SHEET INSTALL GUIDE

Colors:

101
101
108
108
124
124
167
167
193
193
269
269
274
274
276
276
295
295
325
325
330
330
338
338
349
349
365
365
381
381
384
384
402
402
442
442
444
444
447
447
454
454
468
468
487
487
500
500
542
542
550
550
551
551
576
576
579
579
580
580
633
633
660
660
908
908

Design Options

106664
H Baffle

Lengths: 40", 48", 72", or 96"
3.3"W | 9"H
Made of 12mm EchoPanel

106665
Customization Available

Contact Kirei to customize your own H Baffle!

106666
Hardware

Eyebolt or 1/4"-20 set screw

Product Description

The EchoPanel H Baffle is designed to look great while dispersing and absorbing excessive noise. The H Baffle can be ceiling hung at any height using cable or rod. Hang EchoPanel H Baffles in regular rows or random groupings to create wayfinding or other visual design solutions. Custom configurations available.

Echo Panel H Baffle Prod Description

Dimensions & Weight

Type
Weight
Dimensions
40”
4.5 lbs
40"L x 3.3"W x 9"H
48"
5 lbs
48"L x 3.3"W x 9"H
72"
8 lbs
72"L x 3.3"W x 9"H
96"
10 lbs
96"L x 3.3"W x 9"H

Product Specs

ACOUSTIC DATA
Standard EchoPanel NRC acoustic data is available for acoustic calculations. Please contact Kirei for this test data.
INSTALLATION
Ceiling installation via rods or aircraft cable
FIRE RATING
ASTM E84 Class A
MATERIAL
Made from EchoPanel®, a registered trademark of Woven Image® and a low VOC, Red List Free material with published ingredient transparency through Declare and third-party certification by Global GreenTag. Made from over 60% recycled PET, each panel diverts 235 single-use plastic bottles from global landfills and waterways.

Acoustic Solutions

Most rooms sound terrible and most people don’t know what to do about it.

Kirei provides great-looking architectural design elements that are easy to understand, specify and install, are made from recycled content, and improve the acoustics and functionality of any room.
