Fold Tiles

Create visual motion and acoustic control in your space with Fold Tiles.

Website Carousel Fold Tiles 1

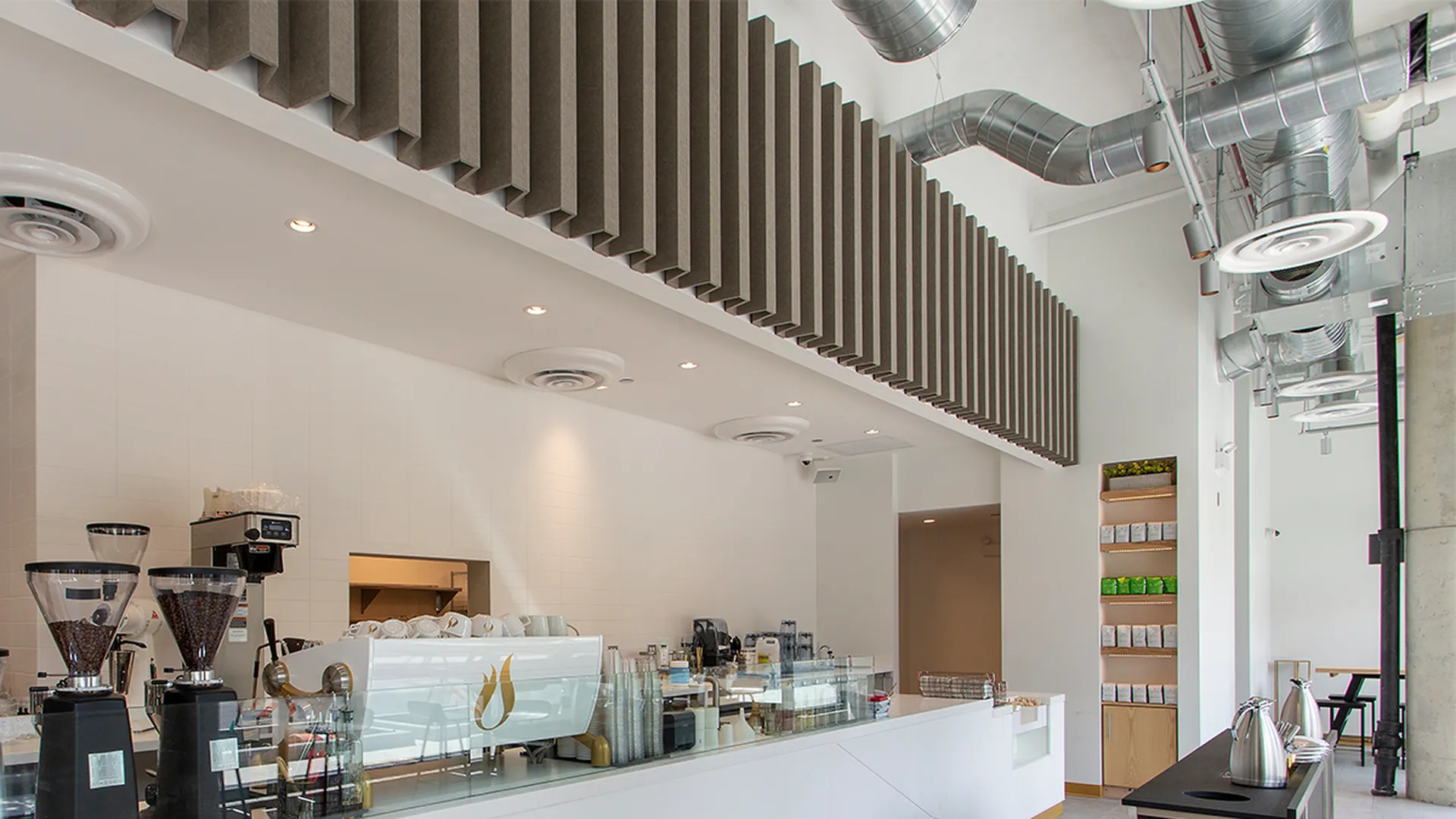

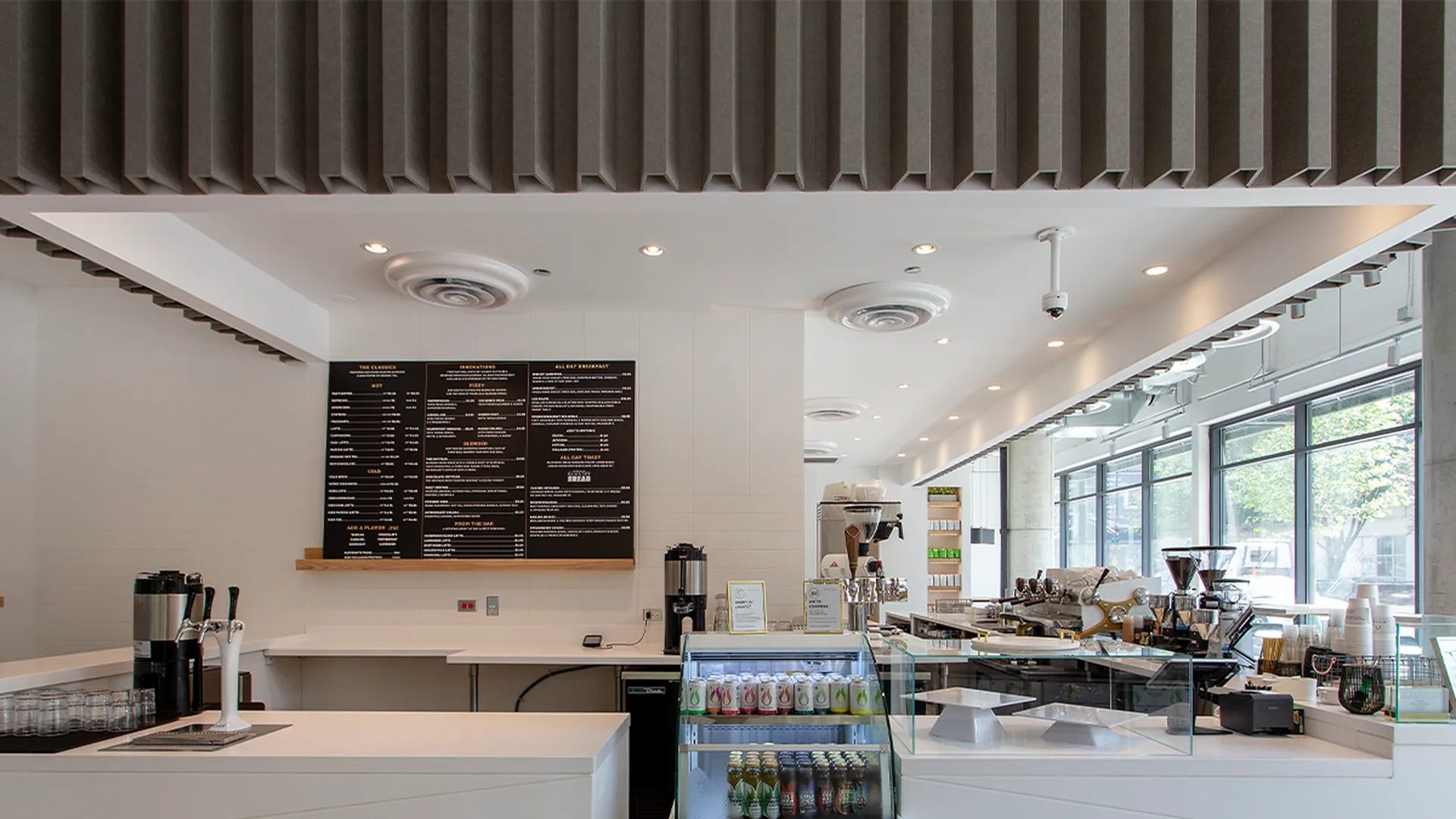

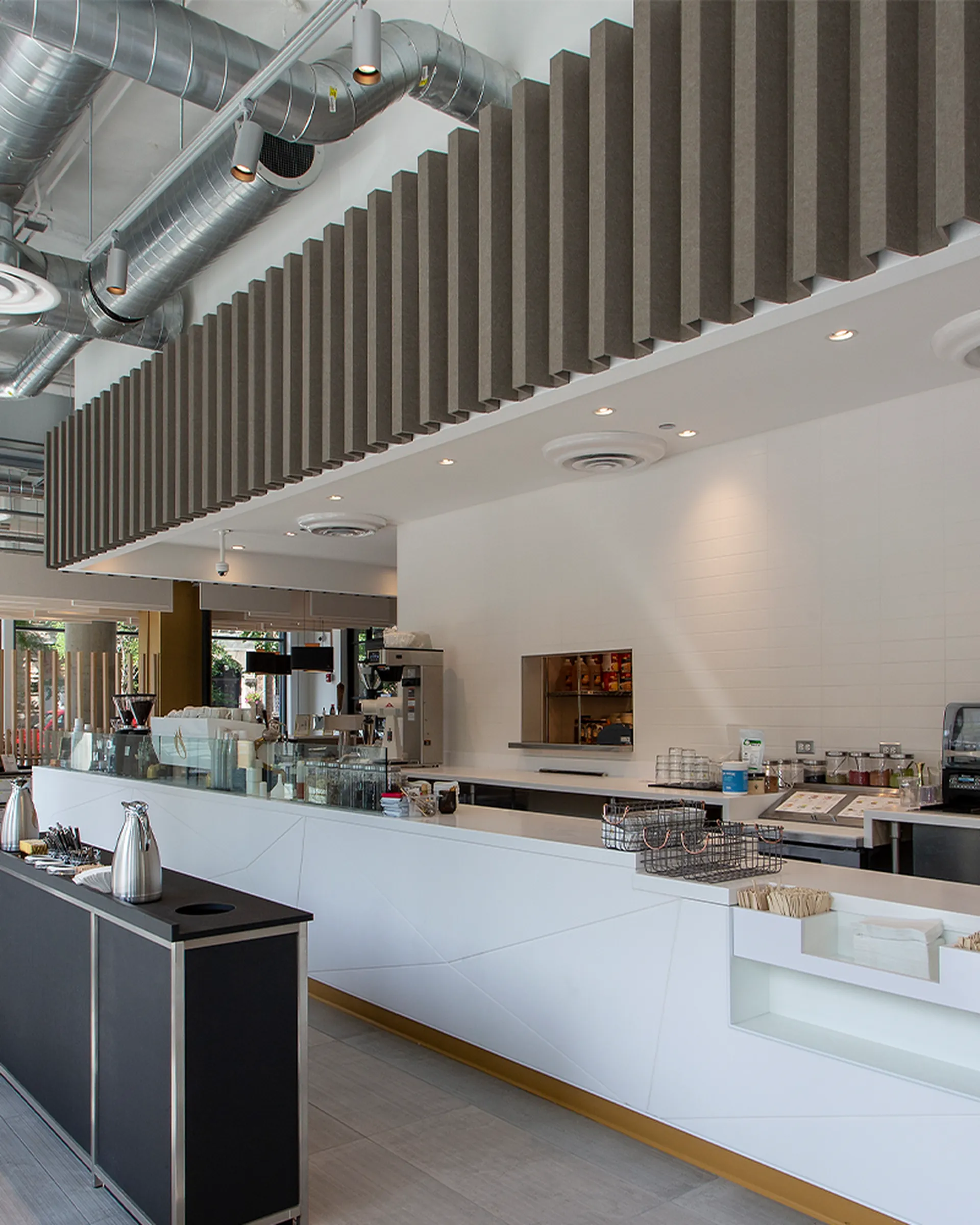

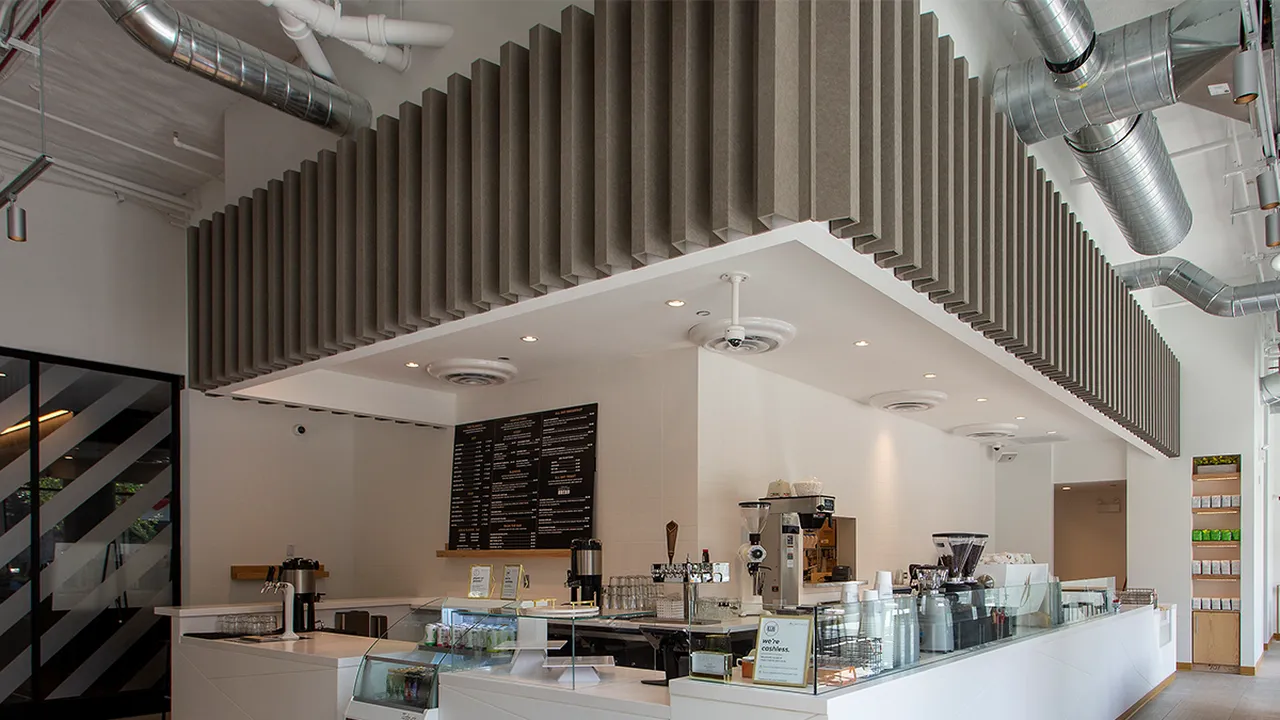

Shown in: 402 Pebble

Fold Tiles

Create visual motion and acoustic control in your space with Fold Tiles.

Website Carousel Fold Tiles 2

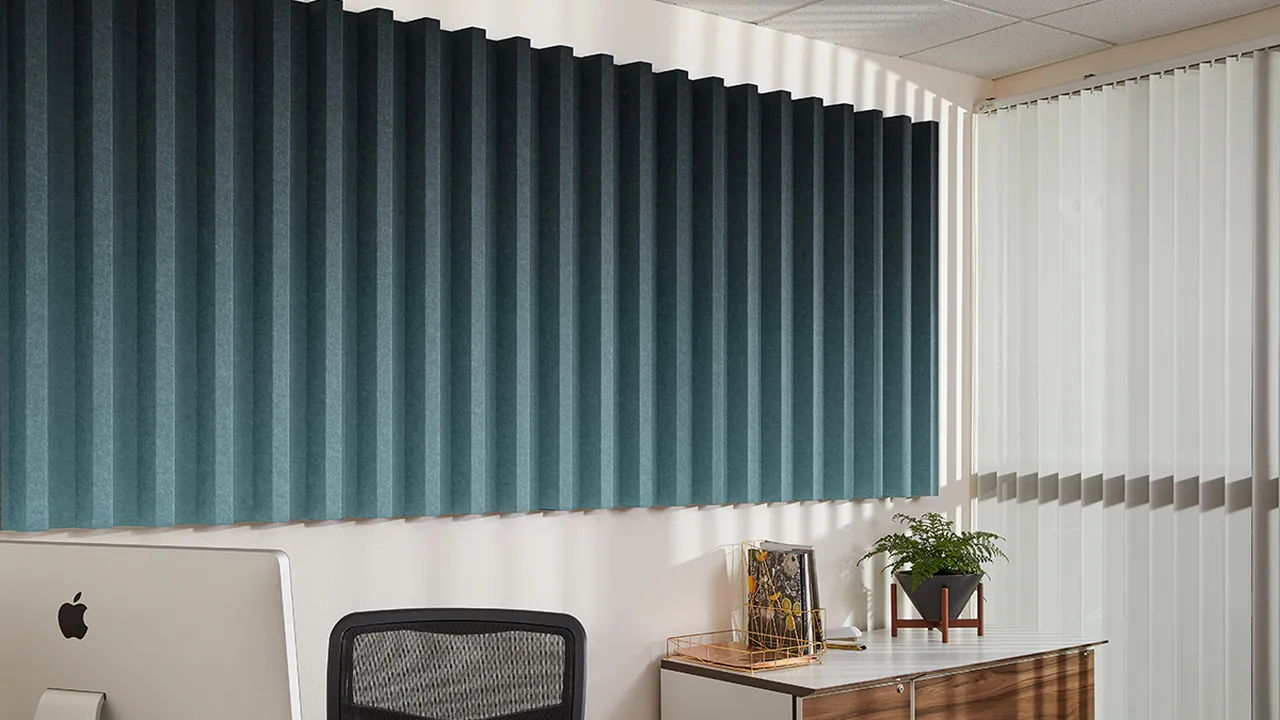

Shown in: Kirei Ink: Geo Horizontal Gradient 551

Fold Tiles add depth to walls and ceilings while deflecting and absorbing sound. Use Fold Tiles for an industrial or corrugated look, or customize for your unique design.

Fold Tile Colors

Shown in: 101 Frost

Dimensions & Weight

Panel
Weight
Dimension
Maxi (1 peak/unit)
5 lbs.
46 in. x 14 in. x 10.38 in.
Mini (1 peak/unit)
2.5 lbs.
46 in. x 8 in. x 5.25 in.
Micro (1 peak/unit)
1.4 lbs.
46 in. x 6 in. x 3 in.

All specs refer to singular products and not multiples unless specified. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur. Custom options available upon request. Each Fold Tile style is sold as an individual unit with 1 peak, and does not have a backer. It ships flat, but is folded prior to installation for easy assembly.

Product Specs

Acoustic data

Acoustic Data

NRC: 0.95

Fire Rating

Fire Rating

ASTM E84 Class A

Materials

Material

100% PET (60% post-consumer recycled)

Emissions

VOC Emissions

CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)

Installation

Installation

Fold Tiles ship flat, but is folded prior to installation for easy assembly. Tiles are mounted using standard construction adhesives. For more information, see the Fold Tiles Installation Guide.

The Shape of Sustainability

Don’t second guess your sustainable solutions. Kirei’s PET products are made from 60% recycled post consumer plastics so you can be sure that every panel you specify is diverting hundreds of plastic bottles from landfills.

Click to scroll left
Sustainability Icon Declare

Declare (Red List Free)

Declare is a nutrition label for building products that is designed to help specifiers quickly identify products that meet their project requirements, disclosing all intentionally-added ingredients and residuals present in the final product and ensuring they do not contain any Red List chemicals.

Sustainability Icon HPD

HPD

Health Product Declarations (HPDs) provide a full disclosure of the potential chemicals of concern in products by comparing product ingredients to a set of priority “hazard” lists based on safe chemical lists from government agencies.

Sustainability Icon LEED

LEED

LEED (Leadership in Energy and Environmental Design) is the most widely used green building rating system in the world. Available for virtually all building types, LEED provides a framework for healthy, highly efficient, and cost-saving green buildings.

Sustainability Icon WELL

WELL

The WELL Building Standard is a performance-based system for measuring, certifying, and monitoring features of the built environment that impact human health and wellbeing, through air, water, nourishment, light, fitness, comfort, and mind.

Click to scroll right
Click to scroll left
Sustainability Icon Declare

Declare (Red List Free)

Declare is a nutrition label for building products that is designed to help specifiers quickly identify products that meet their project requirements, disclosing all intentionally-added ingredients and residuals present in the final product and ensuring they do not contain any Red List chemicals.

Sustainability Icon HPD

HPD

Health Product Declarations (HPDs) provide a full disclosure of the potential chemicals of concern in products by comparing product ingredients to a set of priority “hazard” lists based on safe chemical lists from government agencies.

Sustainability Icon LEED

LEED

LEED (Leadership in Energy and Environmental Design) is the most widely used green building rating system in the world. Available for virtually all building types, LEED provides a framework for healthy, highly efficient, and cost-saving green buildings.

Sustainability Icon WELL

WELL

The WELL Building Standard is a performance-based system for measuring, certifying, and monitoring features of the built environment that impact human health and wellbeing, through air, water, nourishment, light, fitness, comfort, and mind.

Click to scroll right

Downloads

Everything you need to specify and install Fold Tiles in your next project:
