I Baffle

Layer in acoustic impact and visual intrigue with I Baffles

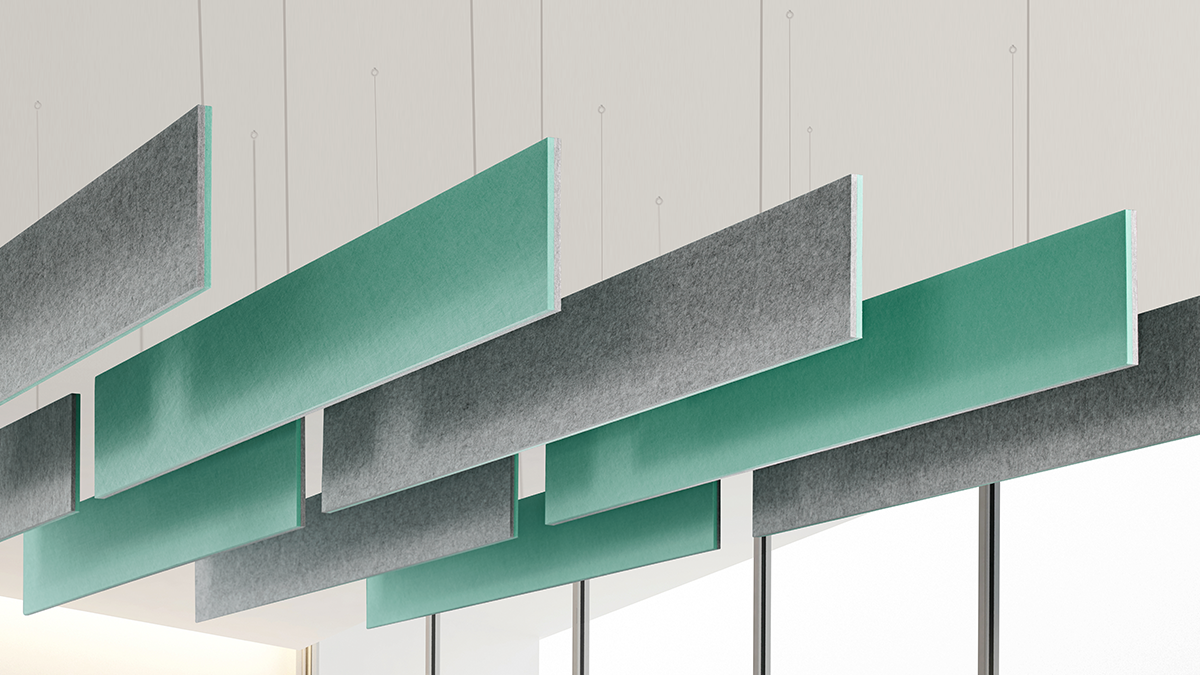

Carousel Landscape I Baffle 444 487 3
Shown in: 442 Grey and 487 Blush

I Baffle

Layer in acoustic impact and visual intrigue with I Baffles

Carousel Landscape I Baffle 442 487 2
Shown in: 442 Grey and 487 Blush

Composed of two 12mm PET panels attached back-to-back, the I Baffle provides increased acoustic control with an added element of color customization. Play with two similar hues or add pops of pigments and prints on both sides to create new visual effects. Hang I Baffles in regular rows, freeform groupings, or with other baffle systems to create beautiful architectural design solutions. Custom configurations available.

I Baffle Colors

Shown in: 101 Frost

Dimensions & Weight

Panel
Weight
Dimension
40"
3.5 lbs
40"L x 0.94"W x 11.5"H
48"
4 lbs
48"L x 0.94"W x 11.5"H
72"
6 lbs
72"L x 0.94"W x 11.5"H
96"
8 lbs
96"L x 0.94"W x 11.5"H

All specs refer to singular products and not multiples unless specified. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur.

Product Specs

Acoustic data

Acoustic Data

Standard NRC acoustic data is available for acoustic calculations. Please contact Kirei for this test data.

Fire Rating

Fire Rating

ASTM E84 Class A

Materials

Material

100% PET (60% post-consumer recycled)

Emissions

VOC Emissions

CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)

Installation

Installation

The I Baffle's adjustable hardware makes them even easier to install, level, and align just right. Use a variety of hanging hardware (cable, rod, or direct mount) to work with complex ceiling environments and adjust to existing ceiling obstructions for fast, simple installation.

Sustainability Sounds Better

I Baffles are made from 60% recycled post consumer plastics so you can be sure that every panel you specify is diverting hundreds of plastic bottles from landfills. Get exactly what you need to help achieve LEED credits and Green Building certifications with our products’ Declare Labels, HPDs, EPDs, and more.

Click to scroll left
Sustainability Icon HPD

HPD

Health Product Declarations (HPDs) provide a full disclosure of the potential chemicals of concern in products by comparing product ingredients to a set of priority “hazard” lists based on safe chemical lists from government agencies.

Sustainabilty Icon EPD

EPD

An Environmental Product Declaration (EPD) transparently reports objective, comparable and third-party verified data about products and services' environmental performances from a lifecycle perspective.

Sustainability Icon Declare

Declare (Red List Free)

Declare is a nutrition label for building products that is designed to help specifiers quickly identify products that meet their project requirements, disclosing all intentionally-added ingredients and residuals present in the final product and ensuring they do not contain any Red List chemicals.

Sustainability Icon Low VOC

Low VOC

Volatile organic compounds (VOCs) refer to chemicals that become volatile at typical indoor conditions. Low-VOC products help to maintain the quality of air indoors and reduce “off-gassing” of hazardous emissions.

Sustainability Icon Class A

Class A Fire Rating

The ASTM E84 test is a standard of the American Society of Testing and Materials (ASTM) that measures the burning properties, or fire resistance, of building materials to determine how the material might contribute to flame spread in the event of a fire.

Sustainability Icon LEED

LEED

LEED (Leadership in Energy and Environmental Design) is the most widely used green building rating system in the world. Available for virtually all building types, LEED provides a framework for healthy, highly efficient, and cost-saving green buildings.

Sustainability Icon WELL

WELL

The WELL Building Standard is a performance-based system for measuring, certifying, and monitoring features of the built environment that impact human health and wellbeing, through air, water, nourishment, light, fitness, comfort, and mind.

Sustainability Icon recycled content

Recycled Materials

Post-consumer recycled content is material that is made from the items that consumers recycle every day (aluminum, cardboard, plastic, etc.). Every Kirei product is manufactured using recycled plastic, with each full panel diverting hundreds of single-use water bottles from the waste stream.

Click to scroll right
Click to scroll left
Sustainability Icon HPD

HPD

Health Product Declarations (HPDs) provide a full disclosure of the potential chemicals of concern in products by comparing product ingredients to a set of priority “hazard” lists based on safe chemical lists from government agencies.

Sustainabilty Icon EPD

EPD

An Environmental Product Declaration (EPD) transparently reports objective, comparable and third-party verified data about products and services' environmental performances from a lifecycle perspective.

Sustainability Icon Declare

Declare (Red List Free)

Declare is a nutrition label for building products that is designed to help specifiers quickly identify products that meet their project requirements, disclosing all intentionally-added ingredients and residuals present in the final product and ensuring they do not contain any Red List chemicals.

Sustainability Icon Low VOC

Low VOC

Volatile organic compounds (VOCs) refer to chemicals that become volatile at typical indoor conditions. Low-VOC products help to maintain the quality of air indoors and reduce “off-gassing” of hazardous emissions.

Sustainability Icon Class A

Class A Fire Rating

The ASTM E84 test is a standard of the American Society of Testing and Materials (ASTM) that measures the burning properties, or fire resistance, of building materials to determine how the material might contribute to flame spread in the event of a fire.

Sustainability Icon LEED

LEED

LEED (Leadership in Energy and Environmental Design) is the most widely used green building rating system in the world. Available for virtually all building types, LEED provides a framework for healthy, highly efficient, and cost-saving green buildings.

Sustainability Icon WELL

WELL

The WELL Building Standard is a performance-based system for measuring, certifying, and monitoring features of the built environment that impact human health and wellbeing, through air, water, nourishment, light, fitness, comfort, and mind.

Sustainability Icon recycled content

Recycled Materials

Post-consumer recycled content is material that is made from the items that consumers recycle every day (aluminum, cardboard, plastic, etc.). Every Kirei product is manufactured using recycled plastic, with each full panel diverting hundreds of single-use water bottles from the waste stream.

Click to scroll right

Downloads

Everything you need to specify and install the I Baffle in your next project:
