Panel
Weight
Dimension

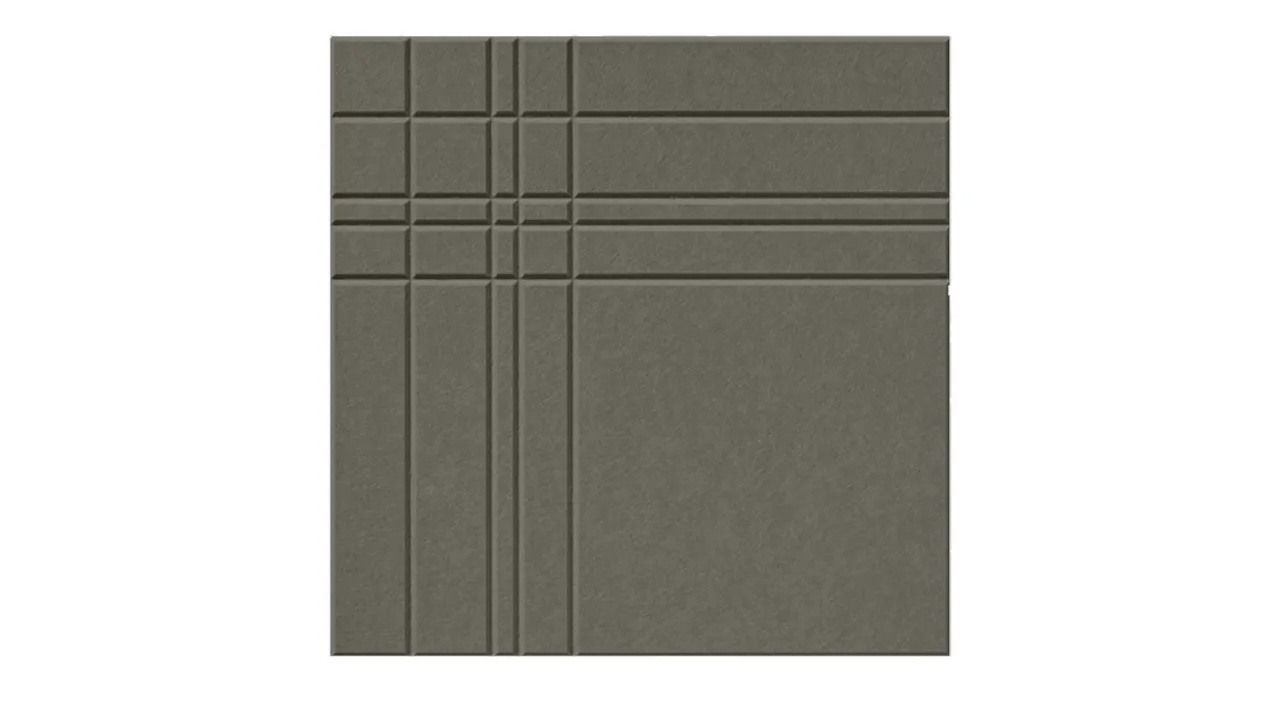

Single Tartan Tile
2 lbs/tile
23”L x 23”H x 0.47"D
All specs refer to singular products and not multiples unless specified. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur. Custom options available upon request.
Acoustic Data
NRC: 0.45-1.0 determined by installation.
Fire Rating
ASTM E84 Class A
Material
100% PET (60% post-consumer recycled)
VOC Emissions
CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)
Installation
Tiles should be installed with standard construction adhesive (no PVA glue). To install, apply adhesive to the back of the tile and then fix to surfaces per manufacturer’s instructions.
