EchoPanel V Baffle

Absorb open space sounds while bringing linear beauty to the ceiling with the EchoPanel® V Baffle

The V-shaped baffle uses simple angles and hidden hardware for a clean, flat-bottom plane and a seamless design aesthetic. Hang EchoPanel V Baffles in regular rows, random groupings, or with other baffle systems to create beautiful architectural design solutions. Custom configurations available.

SPEC SHEET INSTALL GUIDE

Colors:

101
101
108
108
124
124
167
167
193
193
269
269
274
274
276
276
295
295
325
325
330
330
338
338
349
349
365
365
381
381
384
384
402
402
442
442
444
444
447
447
454
454
468
468
487
487
500
500
542
542
550
550
551
551
576
576
579
579
580
580
633
633
660
660
908
908

Design Options

104693
V Baffle

Lengths: 40", 48", 72", or 96"
5.3"W | 7"H
Made of 12mm EchoPanel

104694
Customization Available

Contact Kirei to customize your own V Baffle!

104695
Hardware

Eyebolt Mounting Hardware

Product Description

The V-shaped baffle uses simple angles and hidden hardware for a clean, flat-bottom plane and a seamless design aesthetic. Hang EchoPanel V Baffles in regular rows, random groupings, or with other baffle systems to create beautiful architectural design solutions. Available in over 30 colors from neutral to vibrant tones. Customization is also available for your unique design concepts.

1 V Baffle 338 Staged

Dimensions & Weight

Type
Weight
Dimensions
40”
2.6 lbs
40"L x 5.3"W x 7"H
48”
3.2 lbs
48"L x 5.3"W x 7"H
72”
4.8 lbs
72"L x 5.3"W x 7"H
96”
6.3 lbs
96"L x 5.3"W x 7"H

Product Specs

ACOUSTIC DATA
Standard EchoPanel NRC acoustic data is available for acoustic calculations. Please contact Kirei for this test data.
INSTALLATION
Ceiling installation via cables, chains, or rods.
FIRE RATING
ASTM E84 Class A
MATERIAL
Made from EchoPanel®, a registered trademark of Woven Image® and a low VOC, Red List Free material with published ingredient transparency through Declare and third-party certification by Global GreenTag. Made from over 60% recycled PET, each panel diverts 235 single-use plastic bottles from global landfills and waterways.

Acoustic Solutions

Most rooms sound terrible and most people don’t know what to do about it.

Kirei provides great-looking architectural design elements that are easy to understand, specify and install, are made from recycled content, and improve the acoustics and functionality of any room.

Product Downloads

Related Products

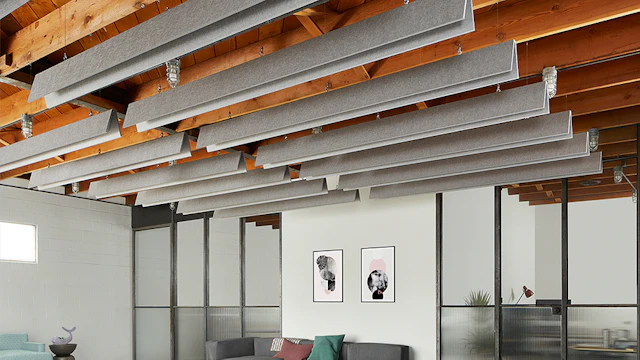

EchoPanel A Baffle
