Panel
Weight
Dimension

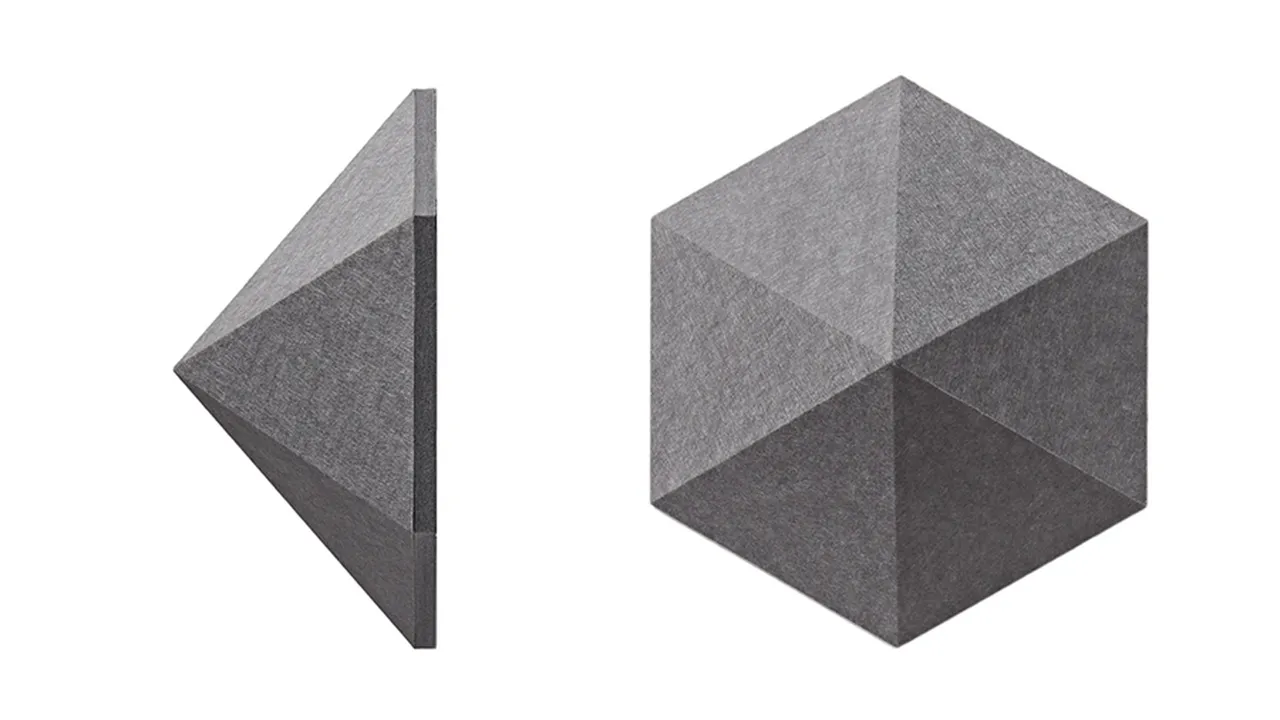

Single Diamond
1 lb
13.9”L x 12”H x 6.5”D
2-Diamond Cluster
2 lb
13.9”L x 24.1”H x 6.5”D

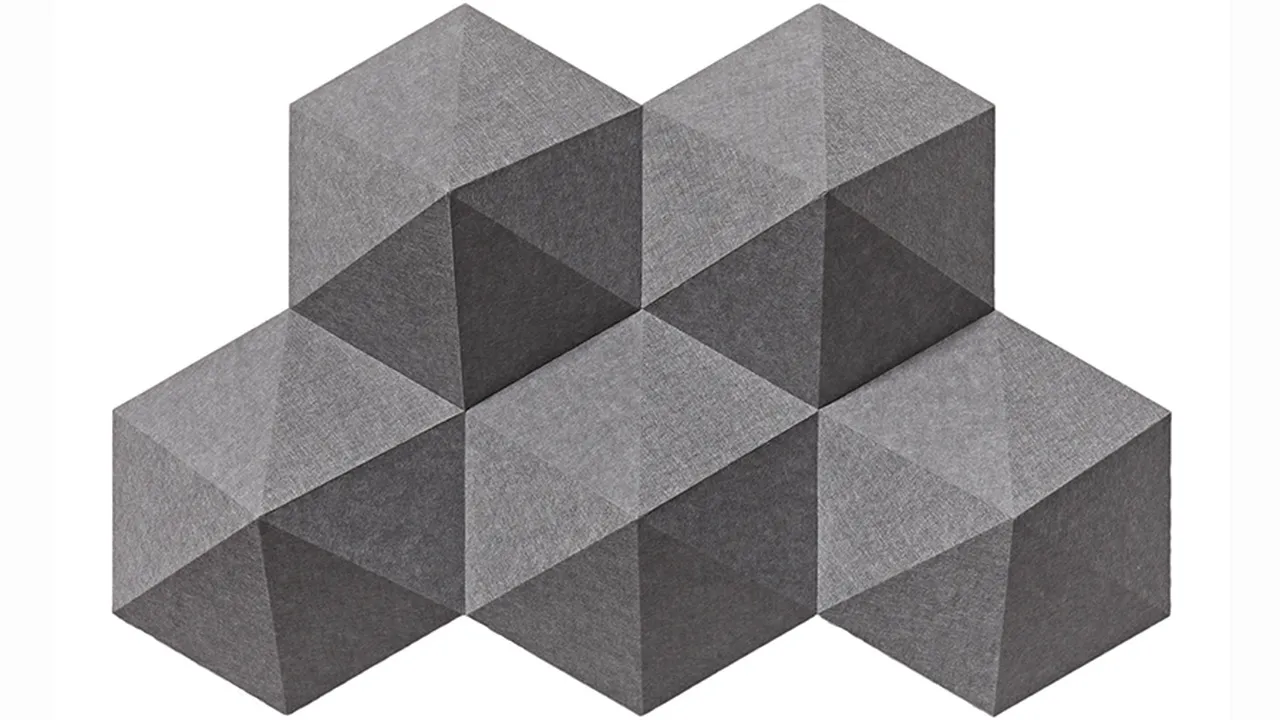

5-Diamond Cluster
5 lb
24.4”L x 36.1”H x 6.5”D
10-Diamond Cluster
10 lb
45.2”L x 36.1”H x 6.5”D
All specs refer to singular products and not multiples unless specified. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur.
Acoustic Data
NRC: 1.05
Fire Rating
ASTM E84 Class A
Material
100% PET (60% post-consumer recycled)
VOC Emissions
CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)
Installation
Construction adhesive to clean, smooth surfaces.
