Panel
Weight
Dimension

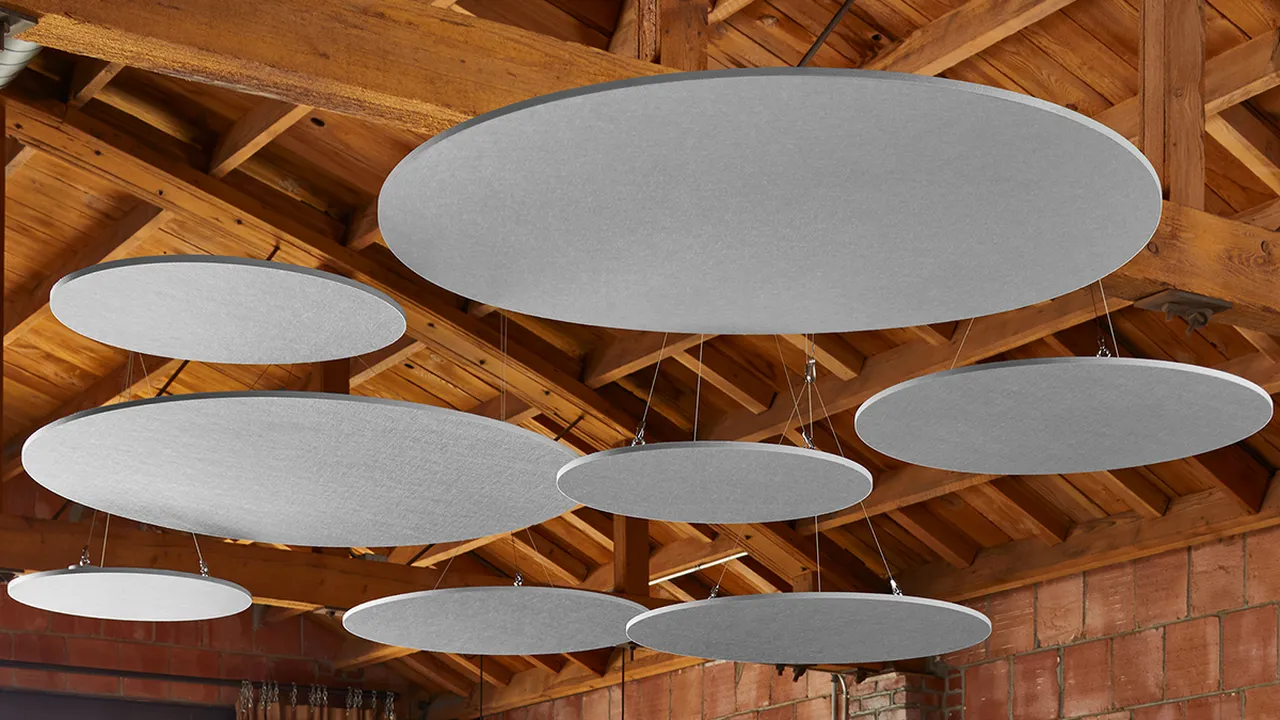

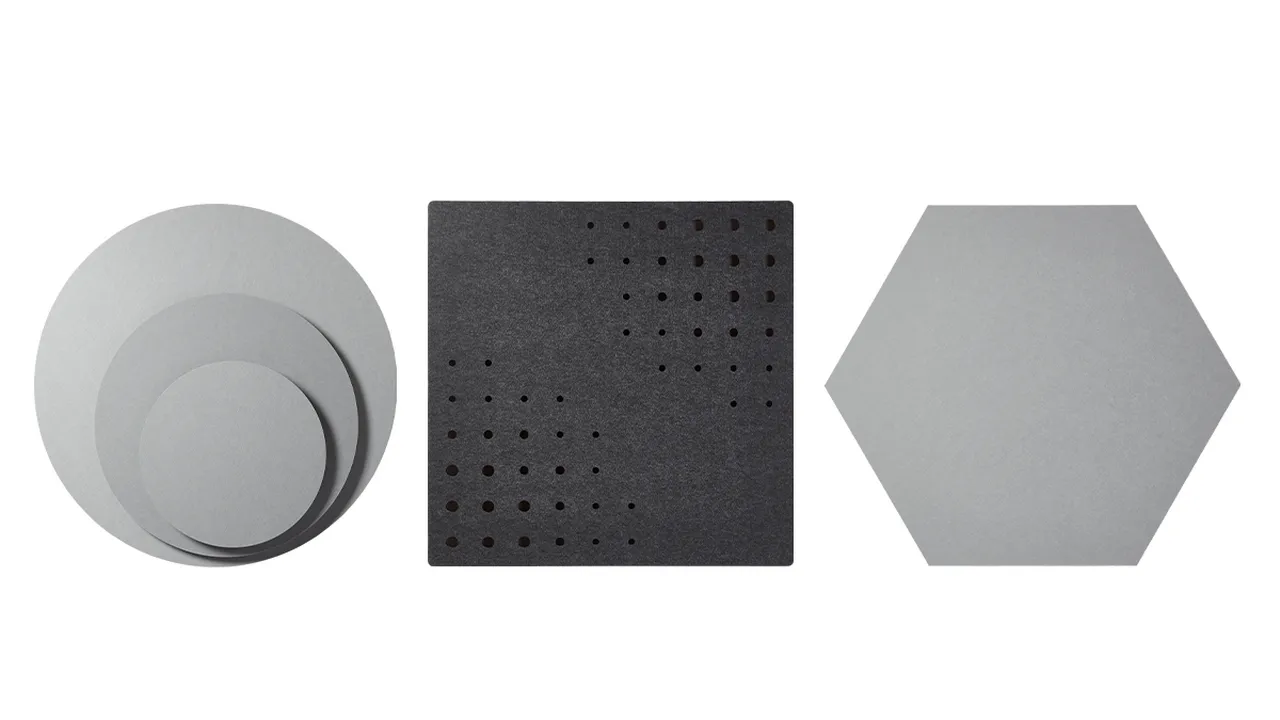

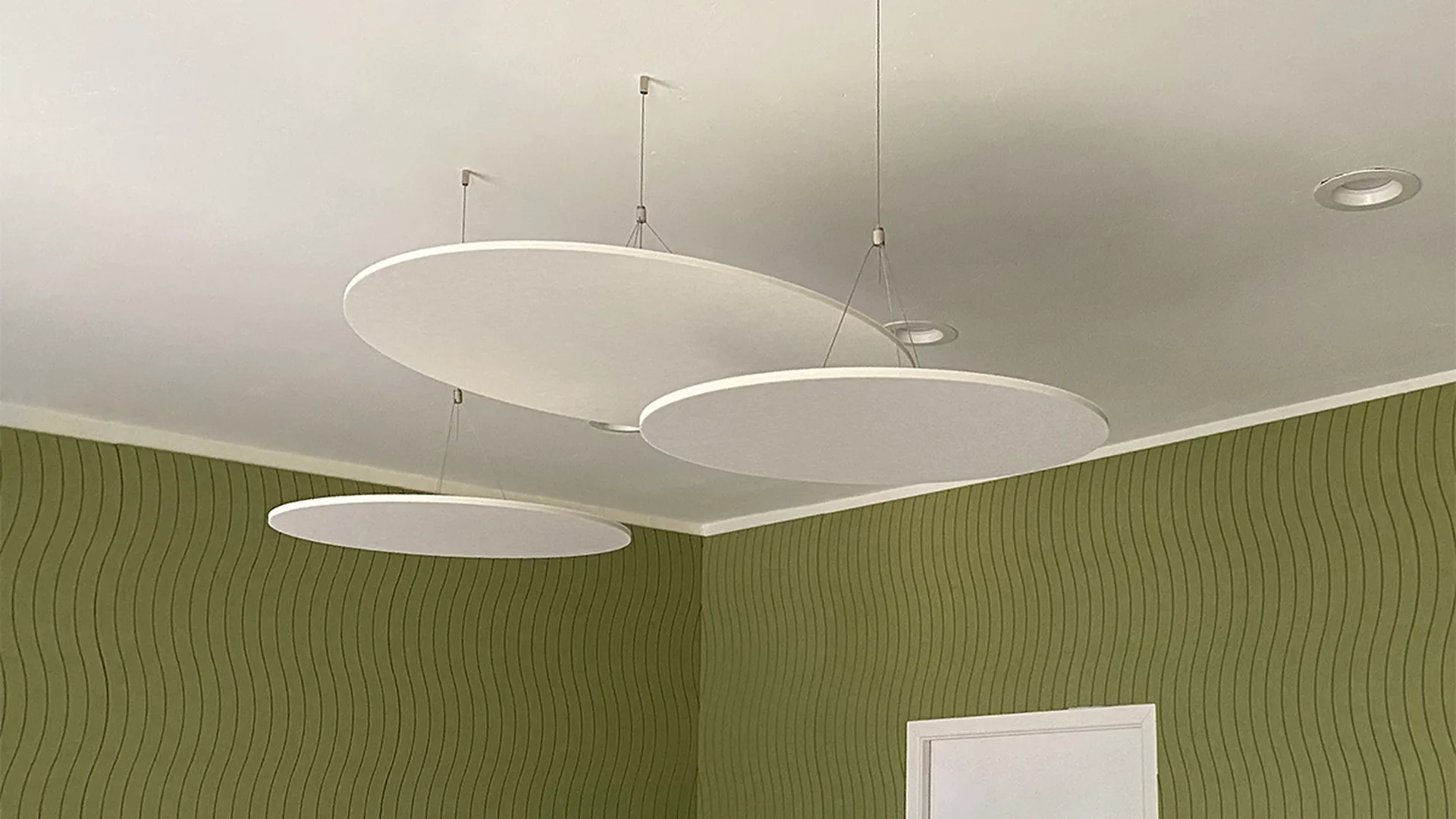

Flat Circle Small Cloud
2 lbs.
23 in. (Diameter) x 0.47 in.
Flat Circle Medium Cloud
6 lbs.
33 in (Diameter) x 0.47 in.
Flat Circle Large Cloud
8 lbs.
46 in. (Diameter) x 0.47 in.

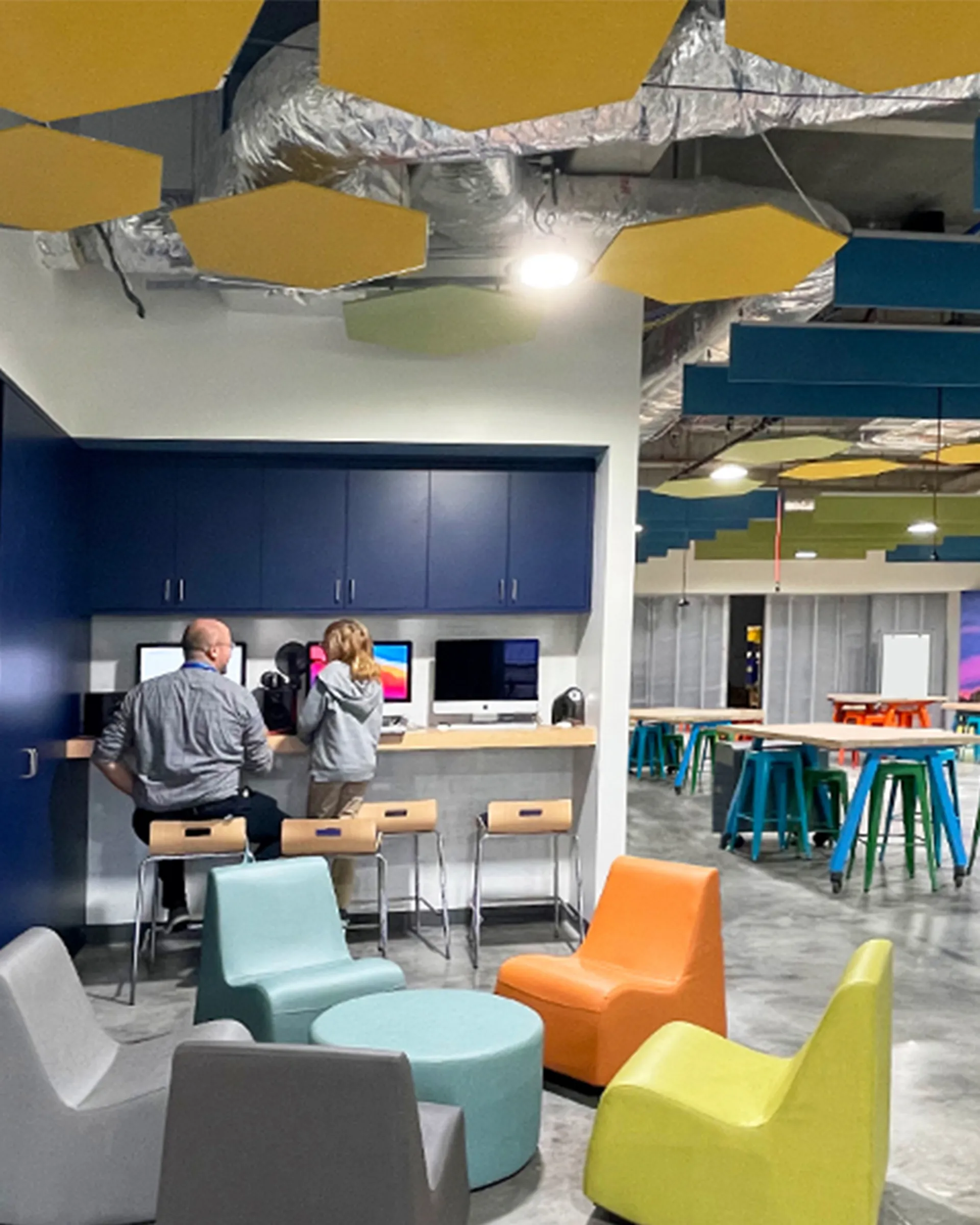

Flat Hex Cloud
6 lbs.
36 in. x 31.18 in. x 0.47 in.
Flat Oval Cloud
16 lbs.
94 in. x 46 in. x 0.47 in.
Flat Rectangle Small Cloud
4 lbs.
46 in. x 23 in. x 0.47 in.
Flat Rectangle Large Cloud
16 lbs.
94 in. x 46 in. x 0.47 in.
Flat Square Small Cloud
2 lbs.
23 in. x 23 in. x 0.47 in.
Flat Square Large Cloud
8 lbs.
46 in. x 46 in. x 0.47 in.

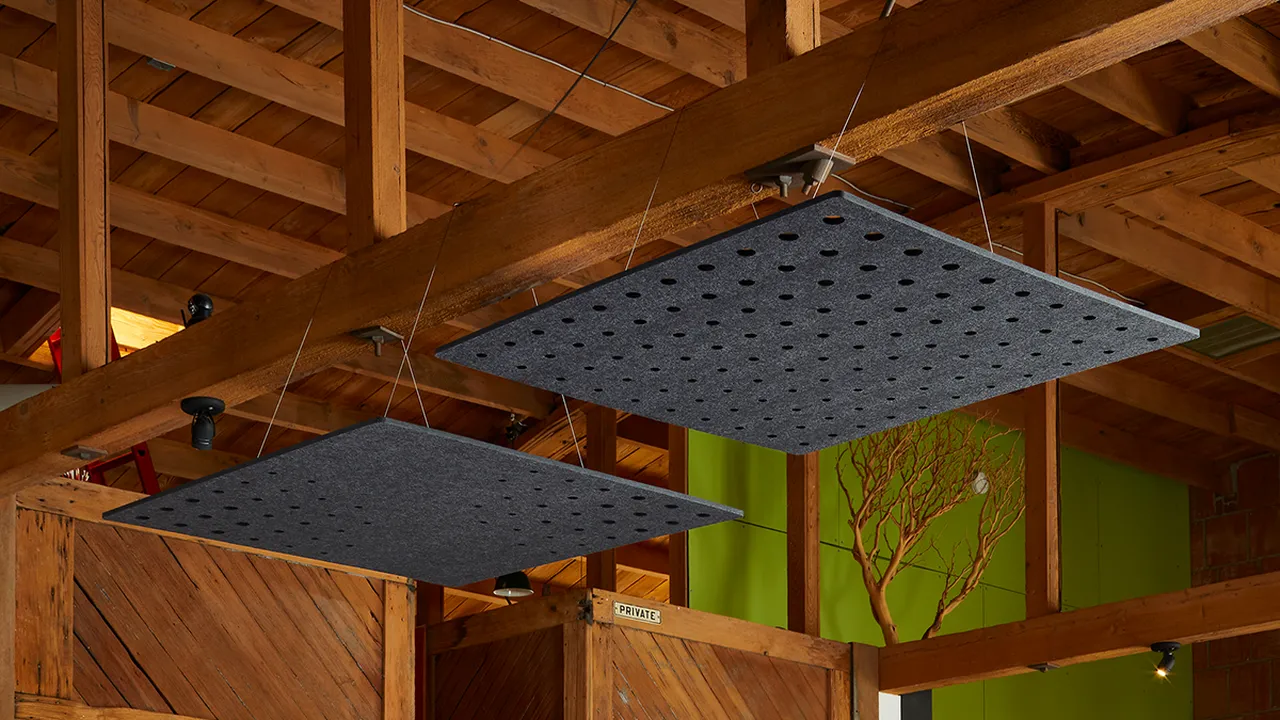

Flat Perforated Circle Cloud
8 lbs.
46 in. (Diameter) x 0.47 in
Flat Perforated Oval Cloud
16 lbs.
94 in. x 46 in. x 0.47 in.
Flat Perforated Rectangle Small Cloud
4 lbs.
46 in. x 23 in. x 0.47 in.
Flat Perforated Rectangle Large Cloud
16 lbs.
94 in. x 46 in. x 0.47 in.

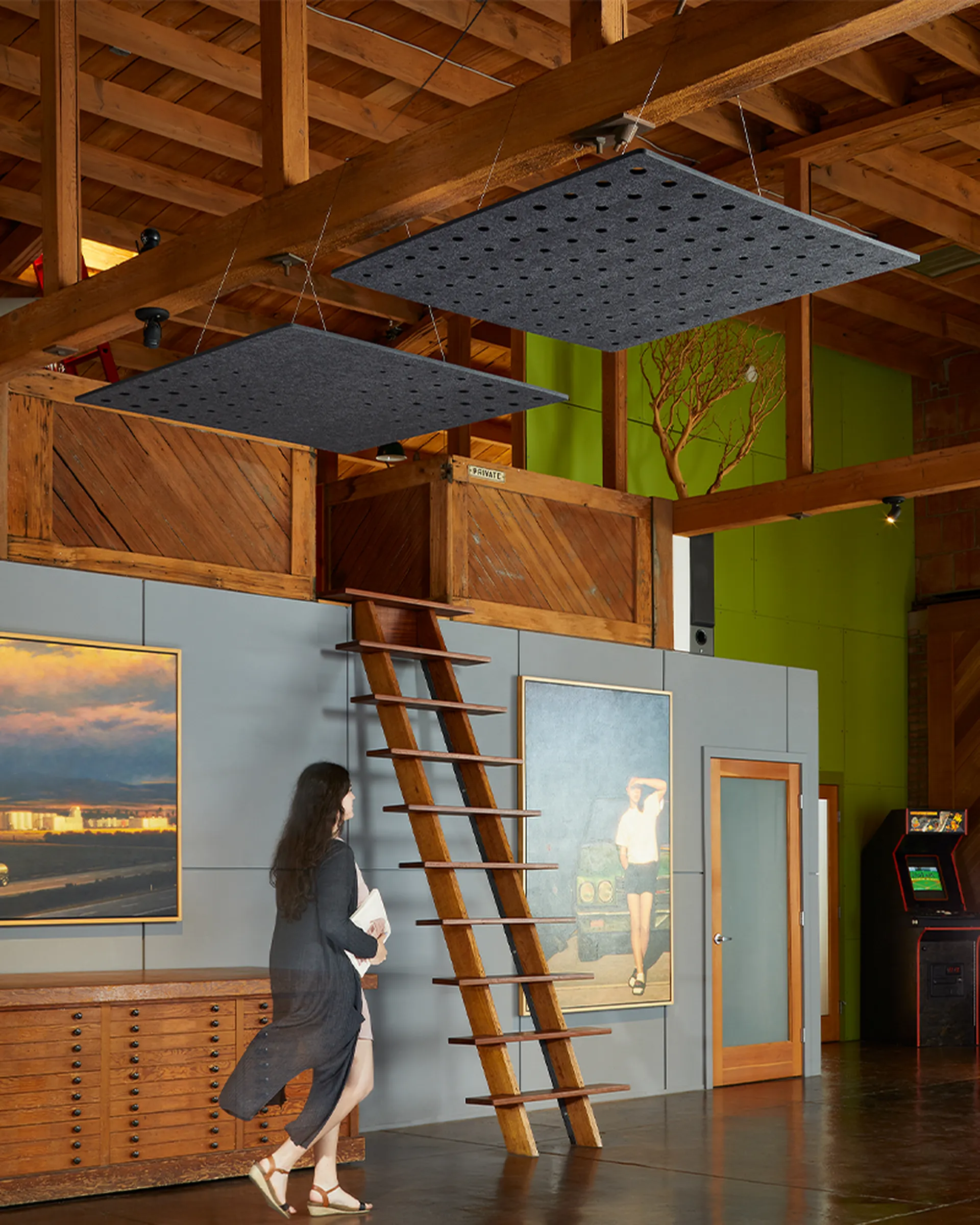

Flat Perforated Square Cloud
8 lbs.
46 in. x 46 in. x 0.47 in.
All specs refer to singular products and not multiples unless specified. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur.
Acoustic Data
Contact Kirei for test data.
Fire Rating
ASTM E84 Class A
Material
100% PET (60% post-consumer recycled)
VOC Emissions
CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)
Installation

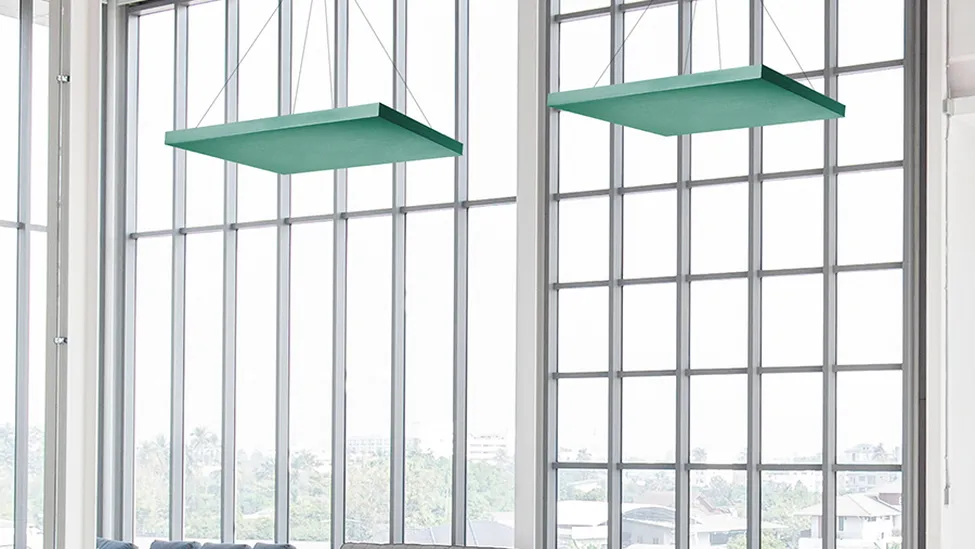

Flat Clouds may be hung from a variety of ceiling types using cable suspension or threaded rod. Flat Cloud mounting options include Cloud Track flexible mounting system. Select your mounting option for looks or flexibility as needed. Ceiling mounting hardware and cables are not included. For more information, see the Clouds Installation Guide.
