Panel
Weight
Dimension
12mm
19 lbs
46"L x 108"H x 0.47"D
24mm
22 lbs
46"L x 108"H x 0.94"D
All specs refer to singular products and not multiples unless specified. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur. Custom options available upon request. EchoLine is sold individually and ships flat.
Acoustic Data
0.40 NRC
Fire Rating
ASTM E84 Class A
Material
100% PET (60% post-consumer recycled)
VOC Emissions
CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)
Installation

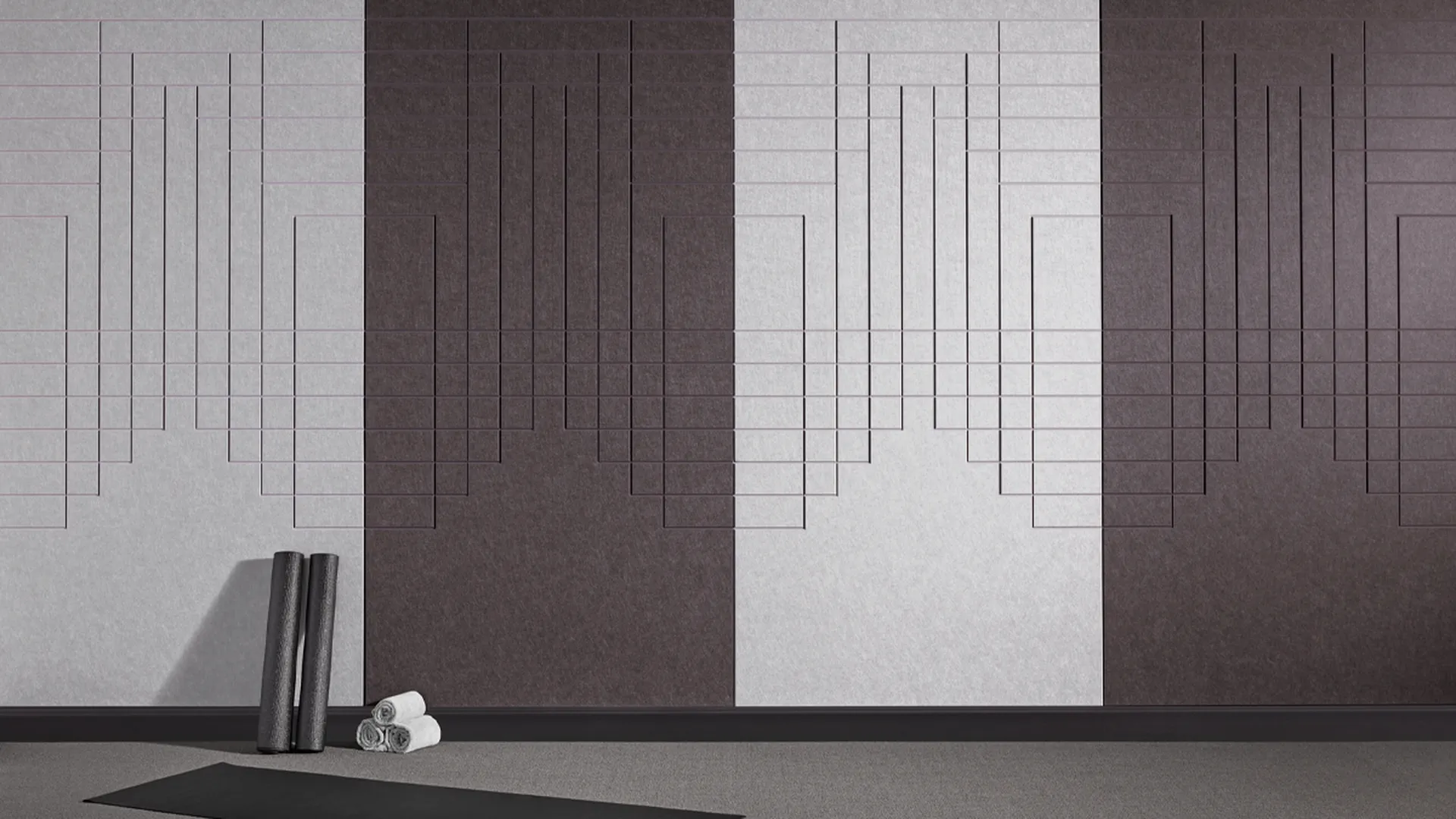

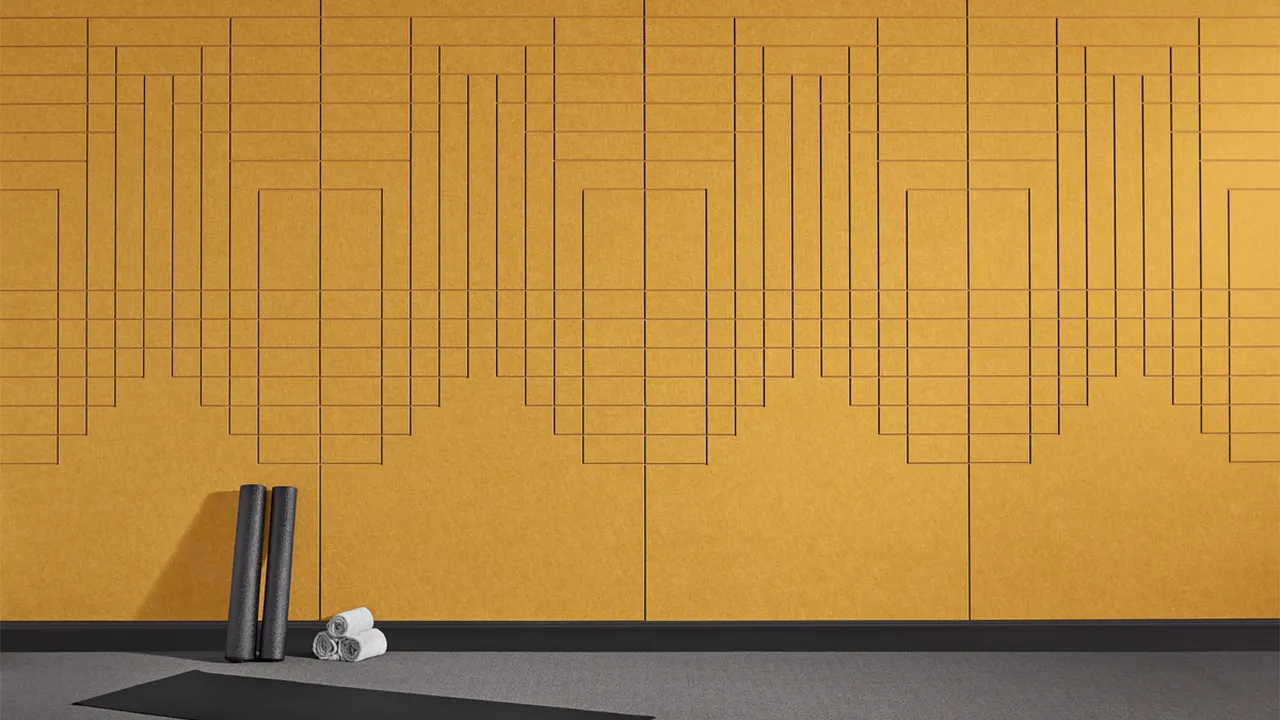

The EchoLine Collection comes in 46” x 108” panels that fit walls up to 9' in height. Panels can be edge-matched for large multipanel walls and are installed using construction adhesive or mechanical fasteners.
