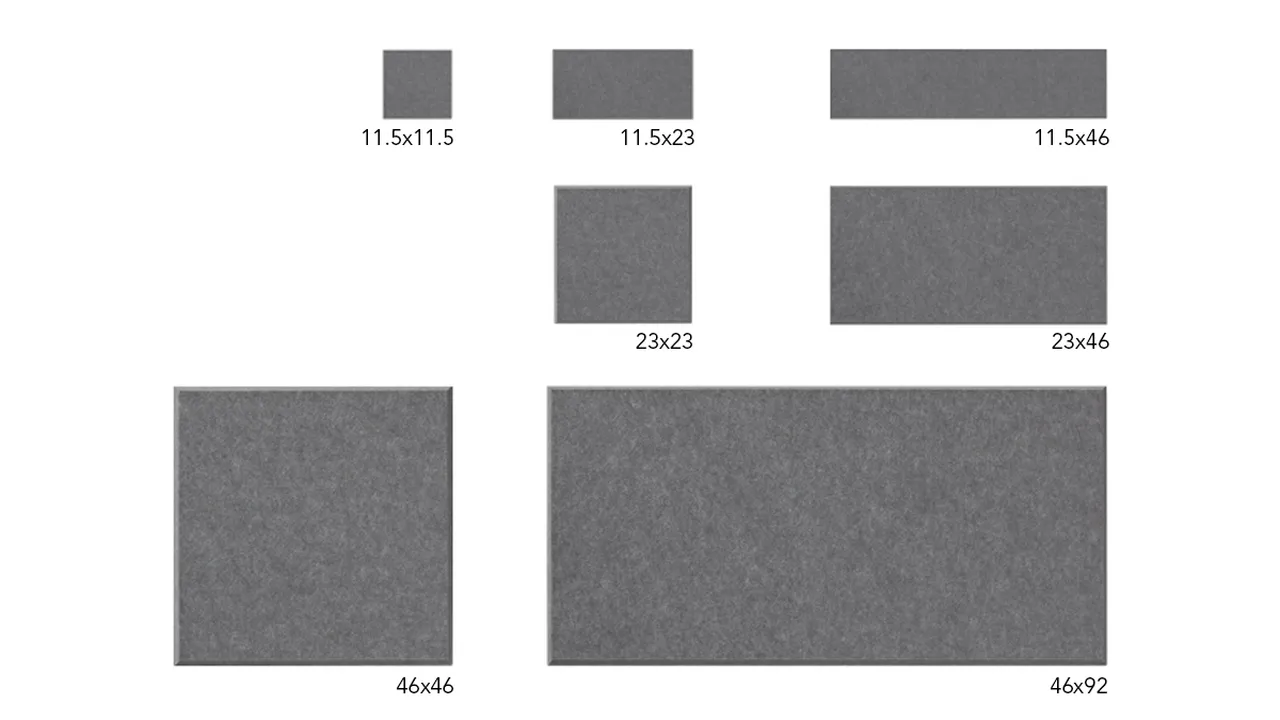

Panel
Weight
Dimension
11.5" x 11.5"
.25 lbs / tile
11.5"L x 11.5"H x 0.47"D
11.5" x 23"
.5 lbs / tile
11.5"L x 23"H x 0.47"D
11.5" x 46"
1 lbs / tile
11.5"L x 46"H x 0.47"D
23" x 23"
1 lbs / tile
23"L x 23"H x 0.47"D
23" x 46"
2 lbs / tile
23"L x 46"H x 0.47"D
46" x 46"
4 lbs / tile
46"L x 46"H x 0.47"D
46" x 92"
8 lbs / tile
46"L x 92"H x 0.47"D
All specs refer to singular products and not multiples unless specified. Custom options available upon request. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur.
Acoustic Data
NRC: 0.45-1.0 determined by installation.
Fire Rating
ASTM E84 Class A
Material
100% PET (60% post-consumer recycled)
VOC Emissions
CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)

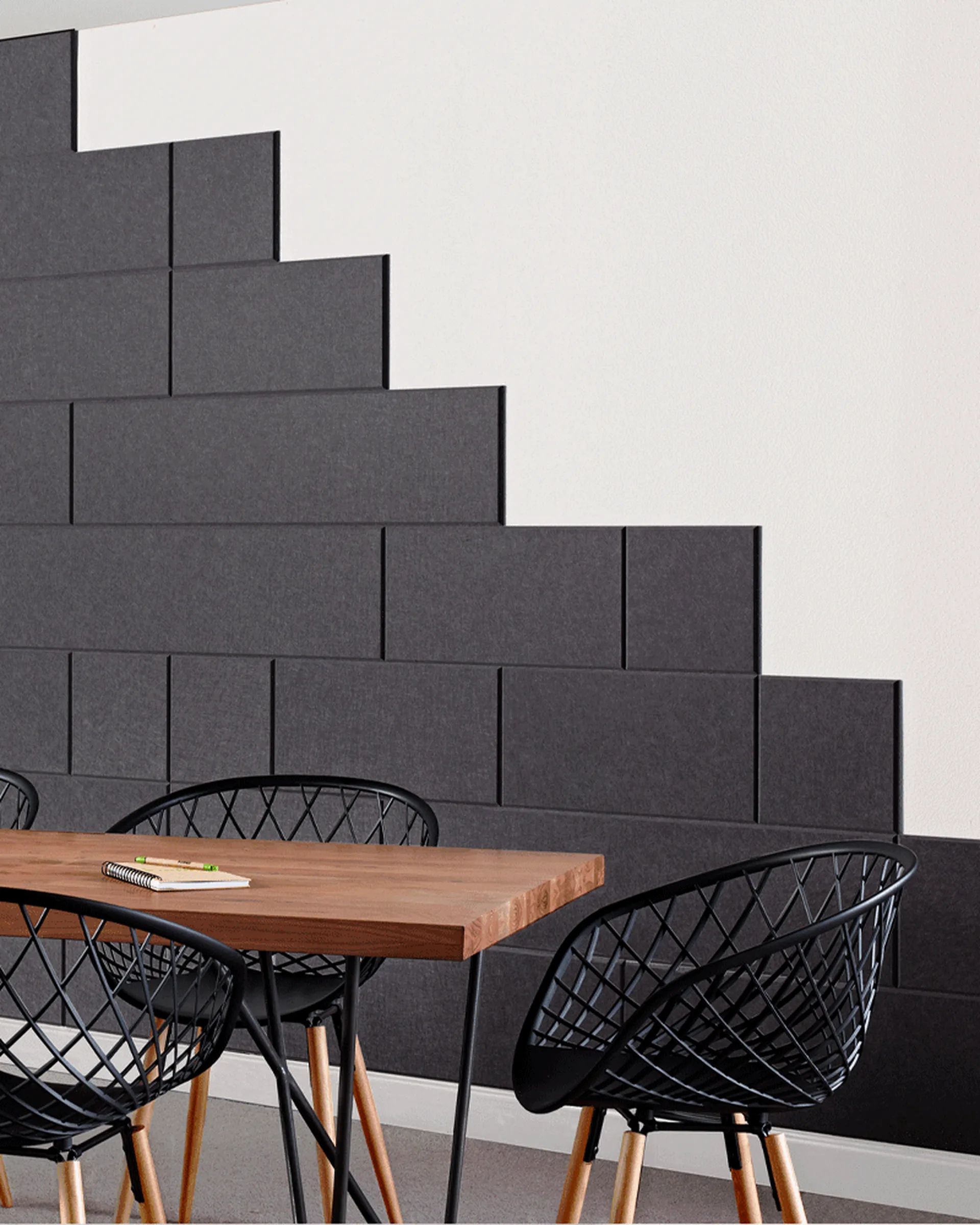

Installation

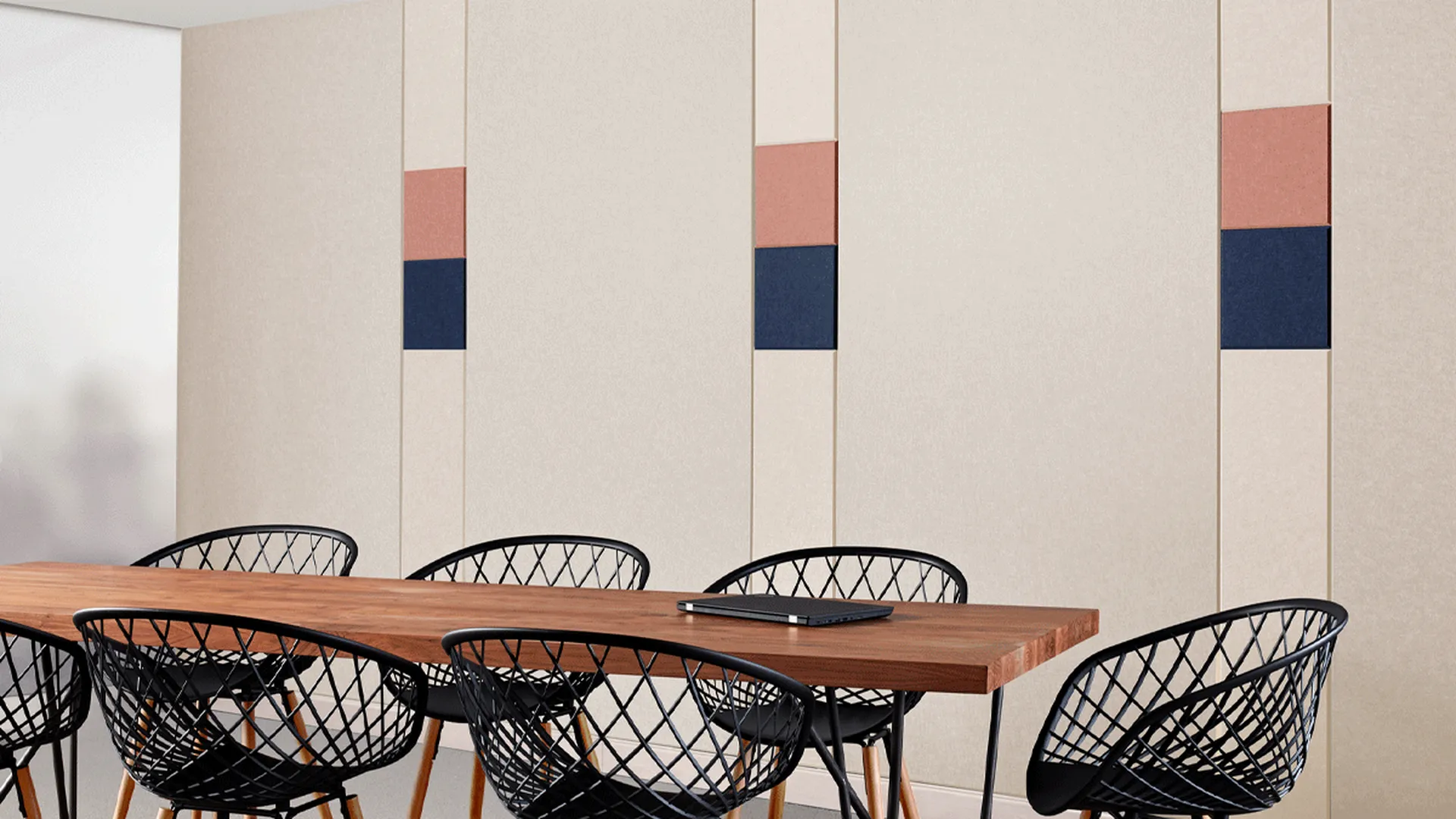

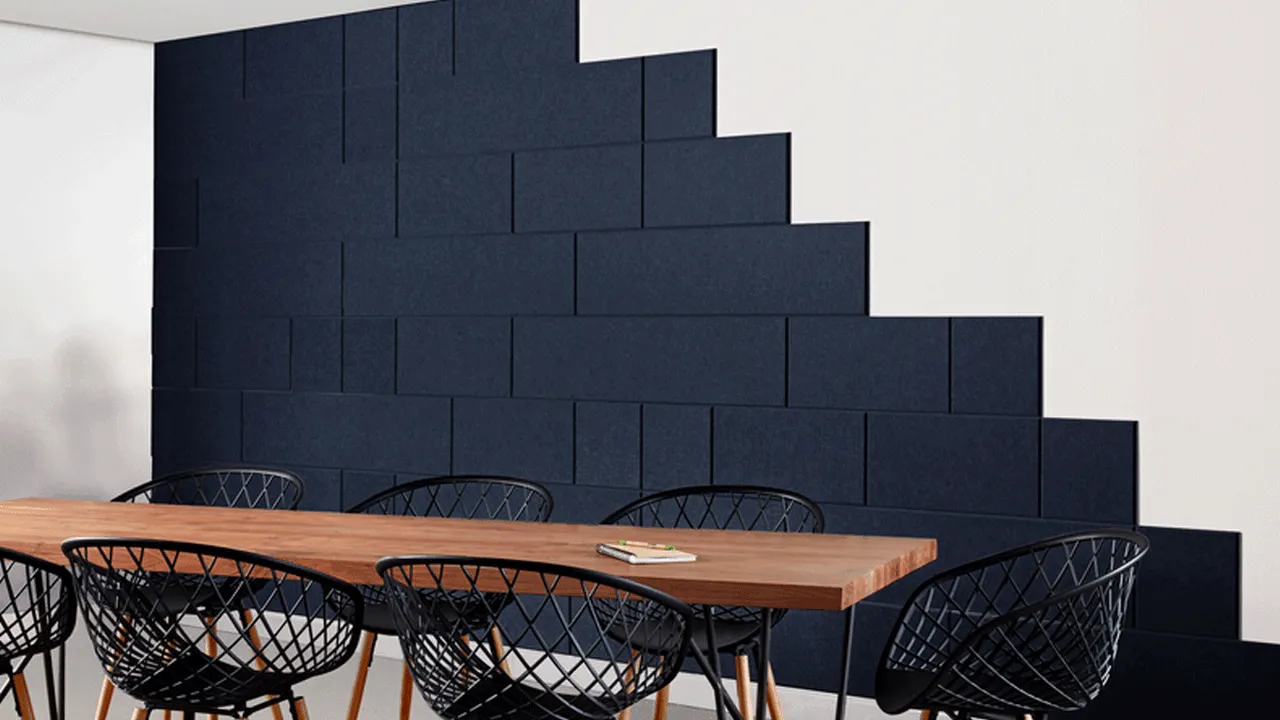

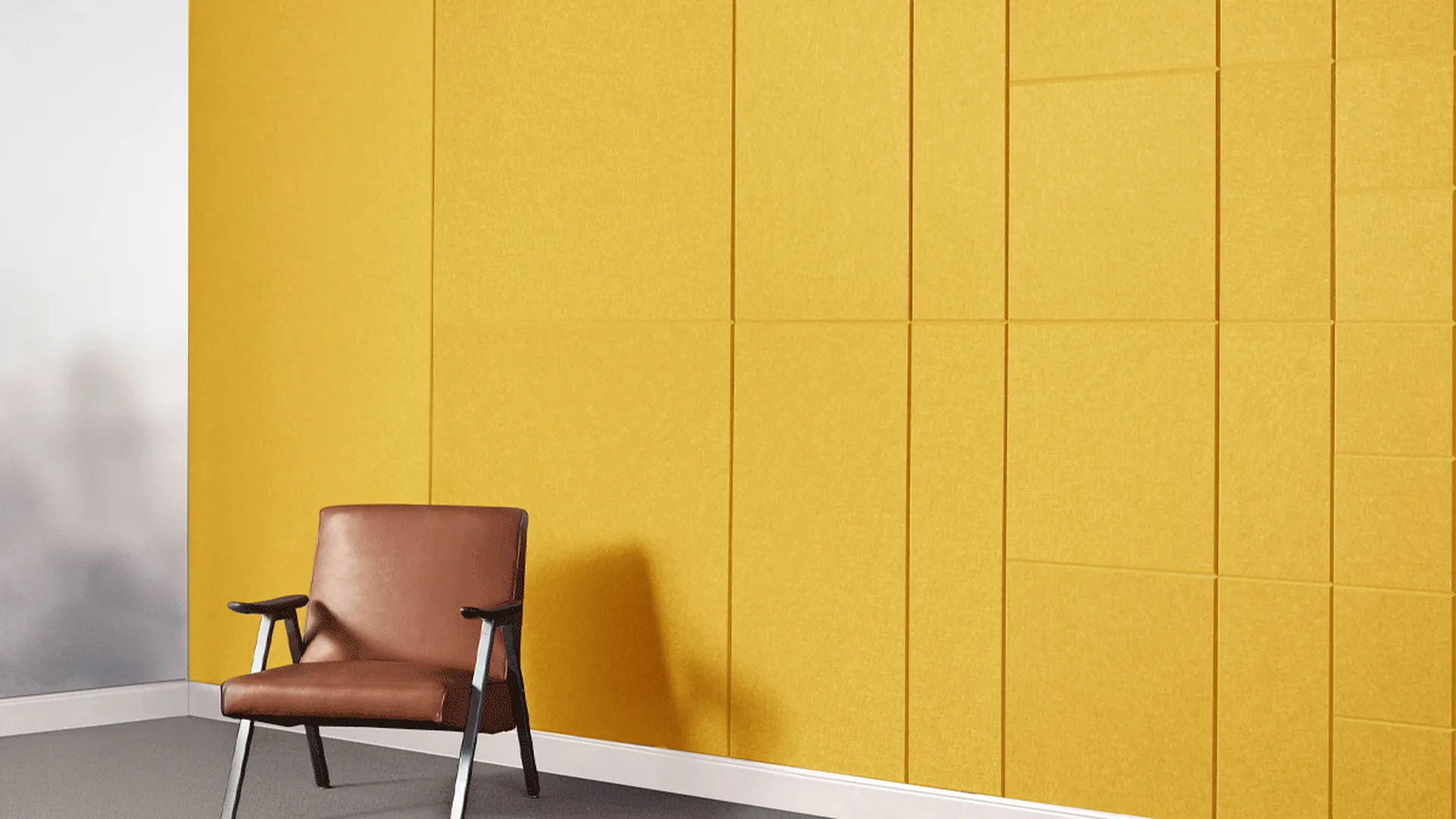

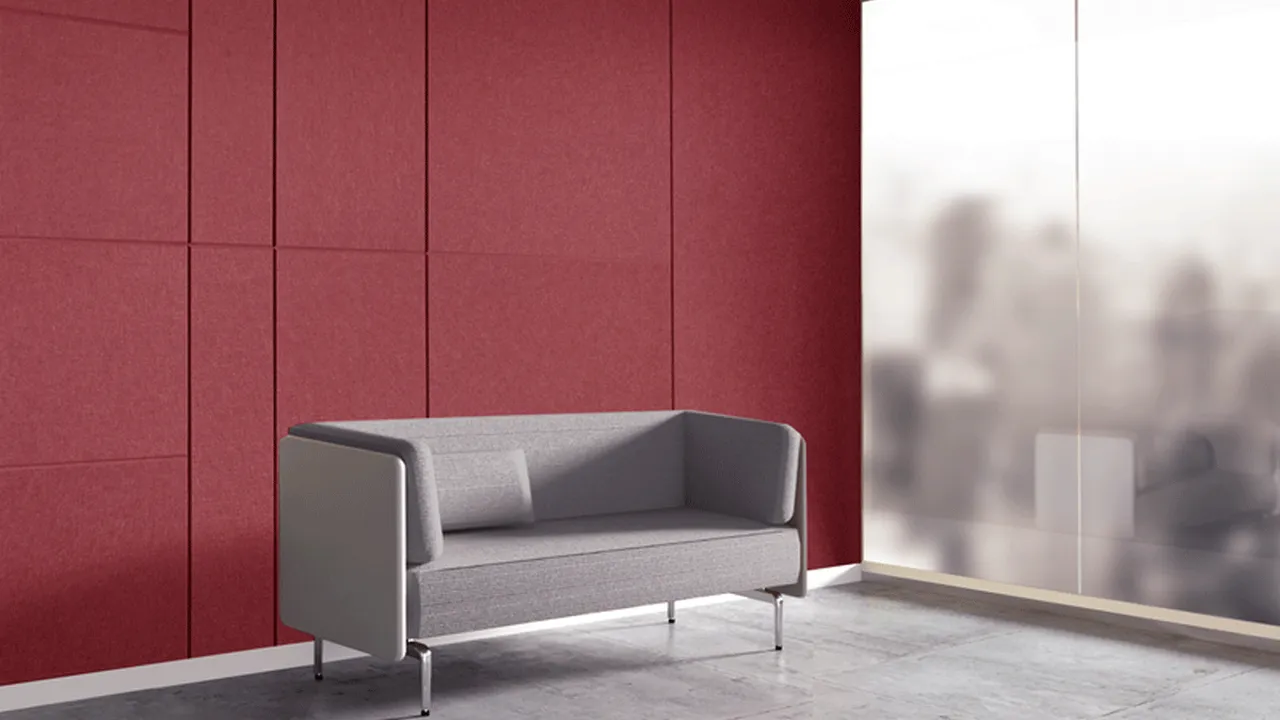

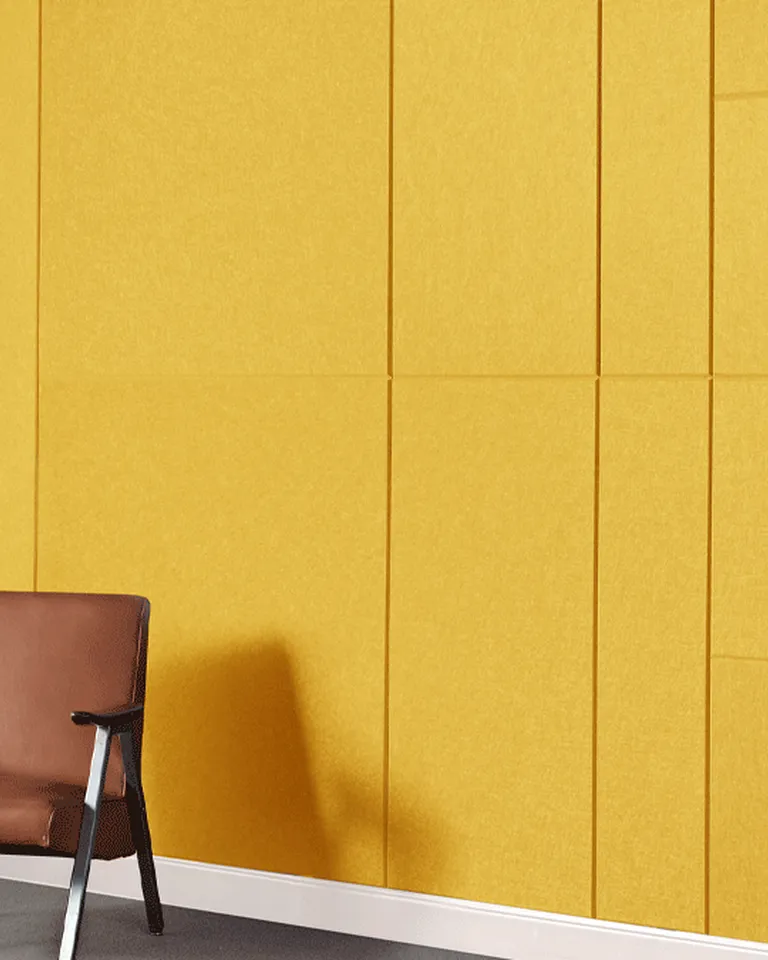

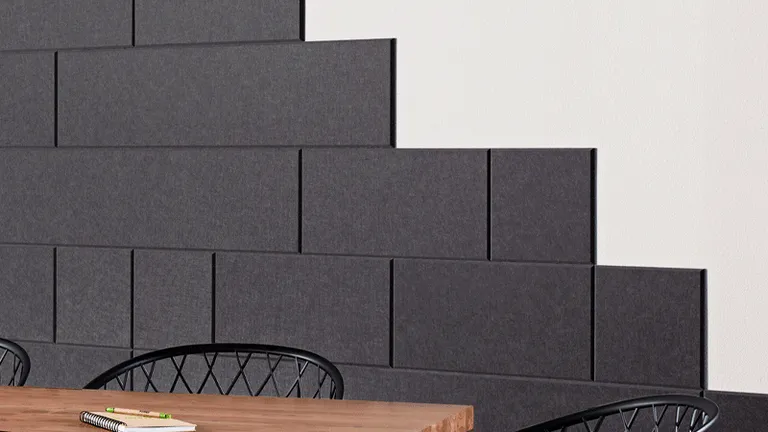

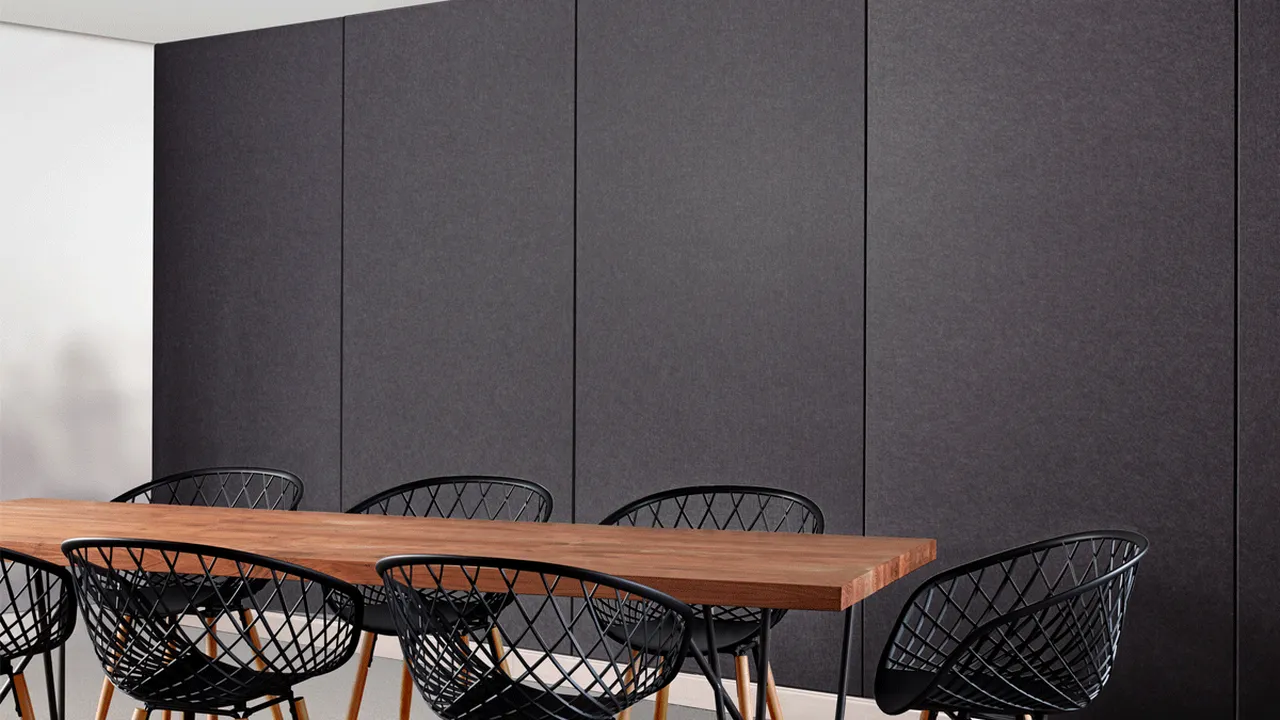

Sync Tiles' timeless beveled edge adds a classic architectural detail while playing nicely with uneven walls. Installs so easily with construction adhesive, your installer will thank you.
