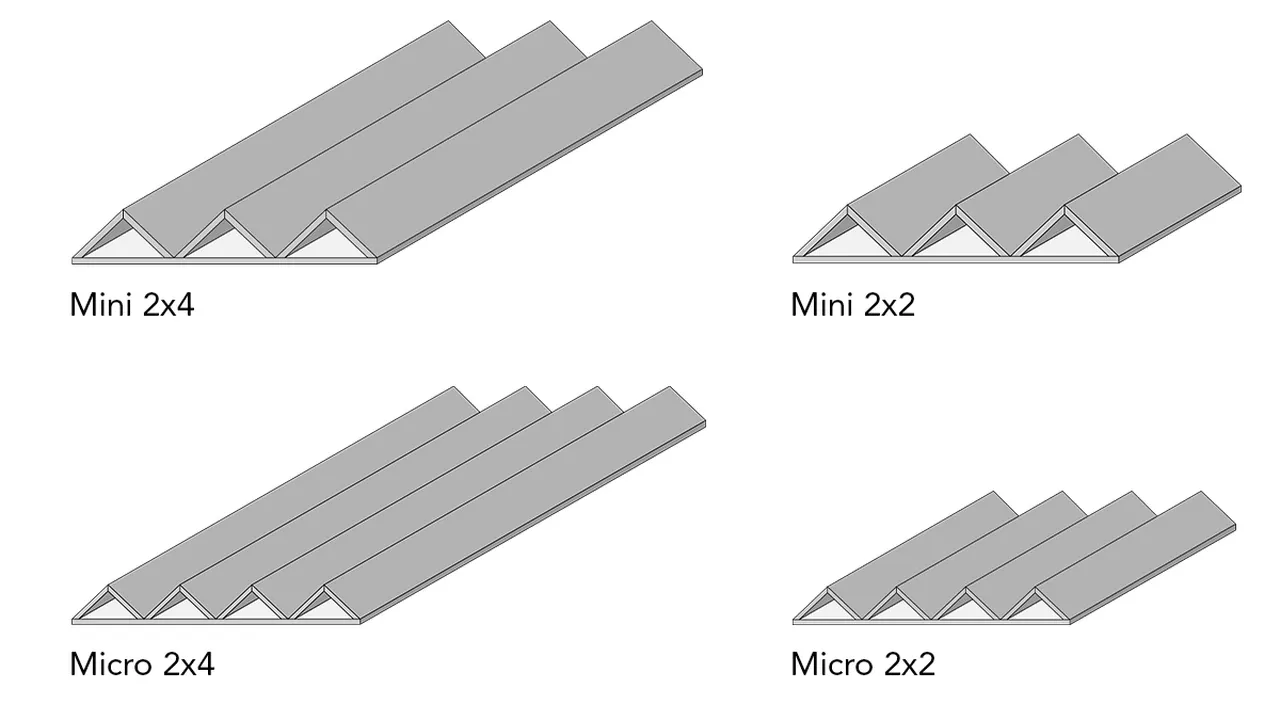

Panel
Weight
Dimension
Mini 2x2
5 lbs.
23 in. x 23 in. x 4.25 in.
Mini 2x4
10 lbs.
23 in. x 46 in. x 4.25 in.
Micro 2x2
5 lbs.
23 in. x 23 in. x 3.13 in.
Micro 2x4
10 lbs.
23 in. x 46 in. x 3.13 in.

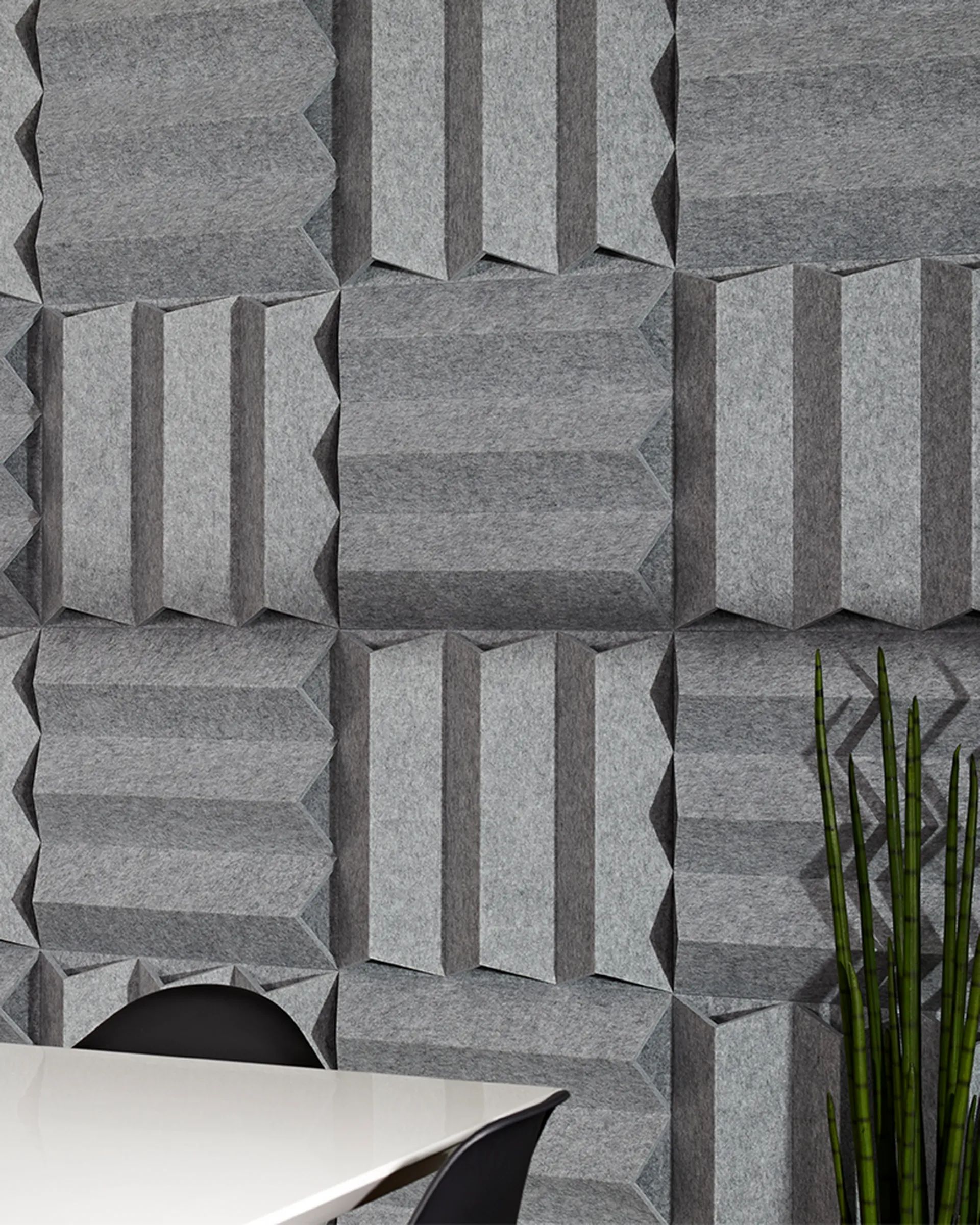

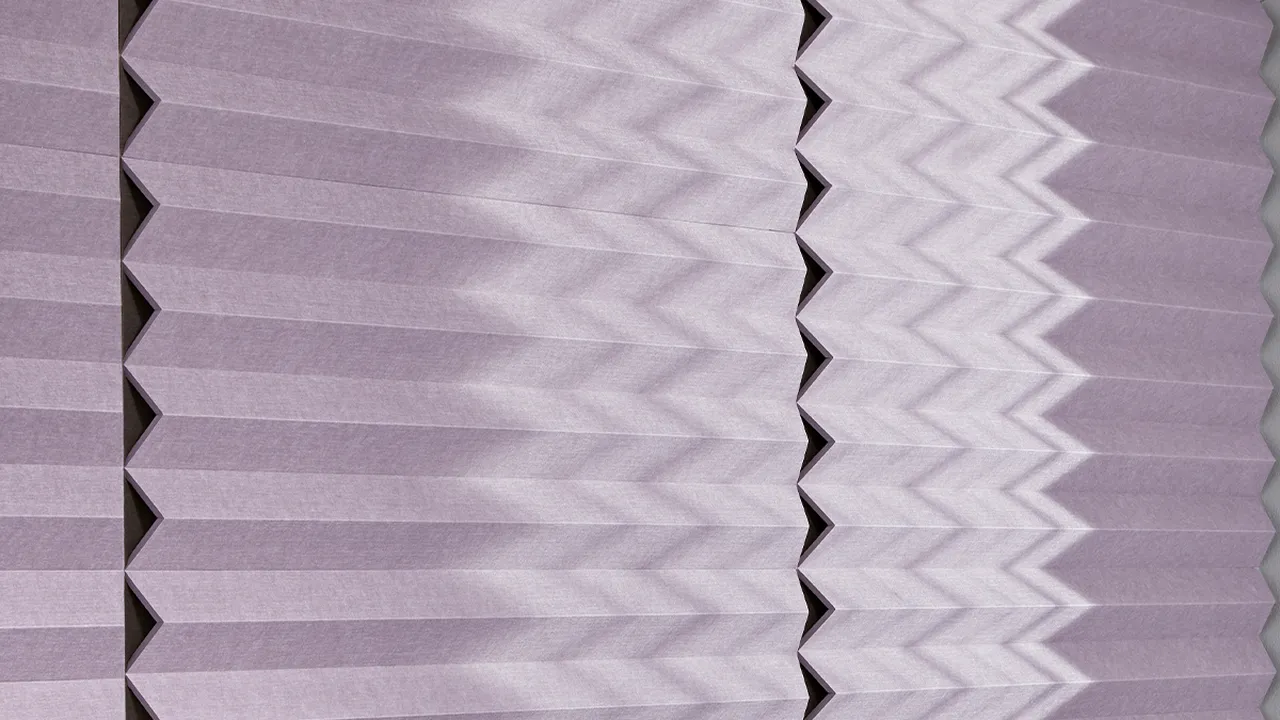

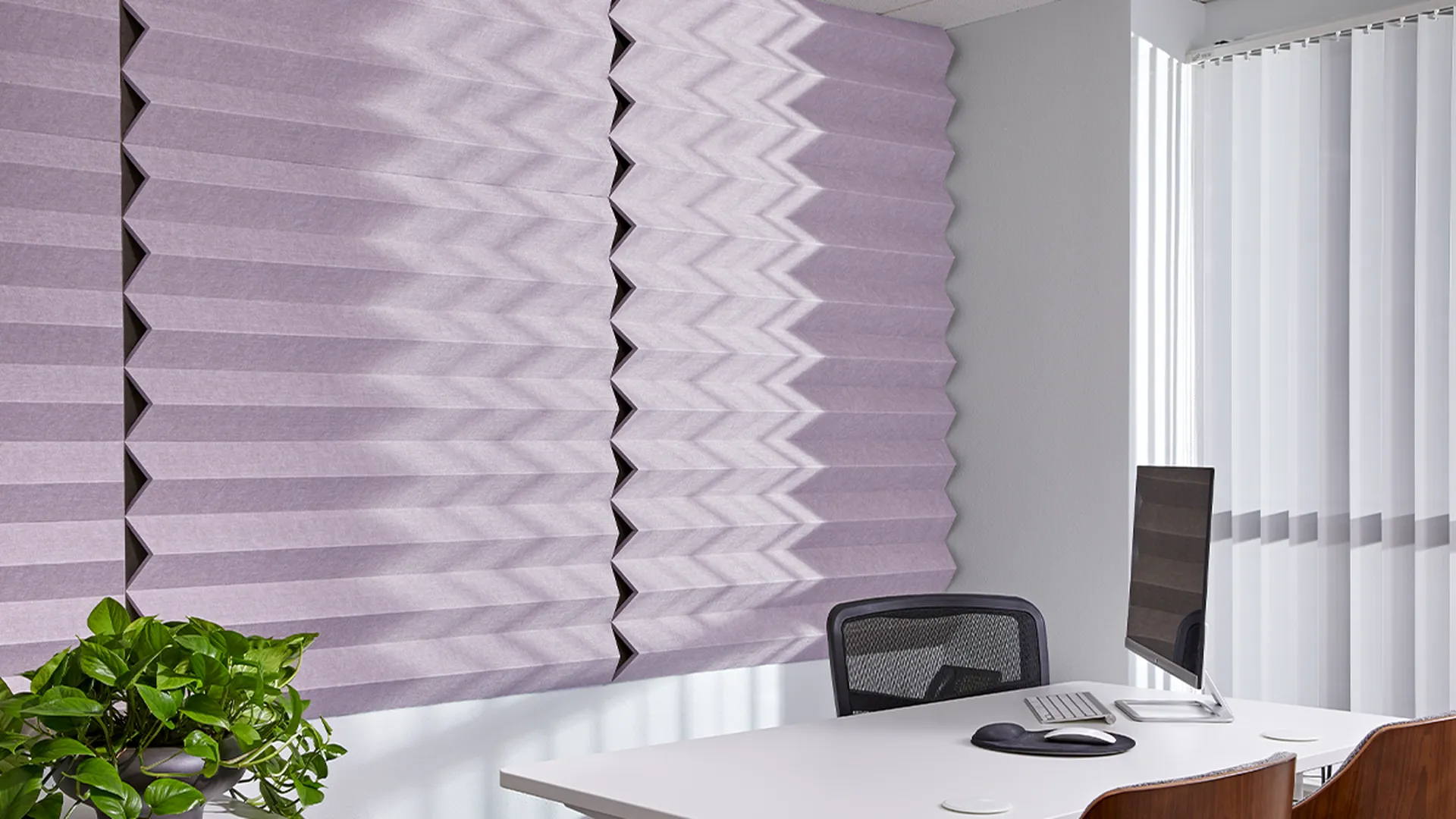

All specs refer to singular products and not multiples unless specified. Due to the nature of the material, cutting and fabrication process, minor dimensional variances may occur. Custom options available upon request. Ridge Tiles are sold as an individual unit with 3-4 peaks, depending on the style, and comes with a backer. It is folded and assembled prior to shipping for simple installation.
Acoustic Data
NRC: 0.95
Fire Rating
ASTM E84 Class A
Material
100% PET felt made with at least 60% post-consumer recycled content
VOC Emissions
CDPH (CA 01350) Compliant TVOC: <0.5 mg/m3 Ecospecifier GreenTag Compliant TVOC: 0.015 mg/m2/hr (ASTM D5116)
Installation
Mount using standard construction adhesives. For more information, see the Ridge Tiles Installation Guide.
